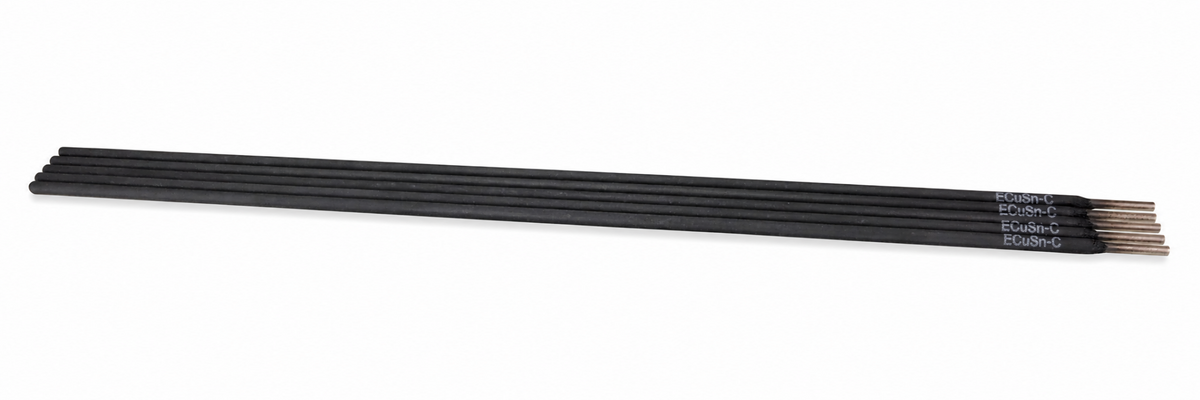

SÜA ECuSn-C Phosphor Bronze Stick Electrodes, 14 Inch

• Phosphor Bronze flux-coated electrodes for SMAW stick welding.
• 14-inch length. Choose 1/8-inch or 5/32-inch nominal core diameter.
• Available in 5-stick, 1 lb and 2 lb packages. Weight packages do not contain a fixed electrode count.
• Dissimilar-metal applications: Join selected steel or cast-iron parts to copper, brass, bronze and gunmetal. Confirm compatibility for the specific base alloys before welding.
• Repair and buildup: For bearing journals, shafts, pumps, propeller and impeller blades. Machinable weld deposits can work-harden in service.
• Use AC or DC electrode positive (DCEP).

Description

SÜA ECuSn-C phosphor bronze electrodes are flux-coated consumables for shielded metal arc welding (SMAW). They are used for joining, repair and surface buildup, including selected steel or cast-iron parts joined to copper, brass, bronze and gunmetal. Applications include bearing journals, shafts, pumps and impellers. Confirm the base-alloy combination and welding procedure before use. Weld deposits are machinable and can work-harden in service. Typical weld-metal properties reported in the supplier technical data sheet are 65,000 psi tensile strength, 35,000 psi yield strength, 45–50% elongation in 2 inches and Brinell hardness of 85–100. These are typical values, not guaranteed minimums. Use AC or DC electrode positive (DCEP). Recommended current is 90–140 A for 1/8-inch electrodes and 120–170 A for 5/32-inch electrodes. All electrodes are 14 inches long. Available packages contain 5 sticks, 1 lb or 2 lb. Weight packages are sold by weight, not a fixed electrode count. Clean the weld area and follow the recommended preheat, interpass and cooling procedure for the base metal and section thickness.

Recommended amperage

Warranty

6-month warranty.
