56% Silver is the lowest melting temperature high silver brazing filler metal, it is a cadmium-free alloy with a narrow melting point range. ThiSmalloy offers good fluidity and joint strength and is used to braze ferrous and non-ferrousmalloys in joints requiring a low temperature like copper, brass, steel, Stainless steel and some nickel alloys. Complies with ANSI/AWS A5.8 BAg-7, ASME 5.8, and QQ-B-654A Class BAg-7, AMS 4763, National s anitation Foundation Standard51, ISO 17672 Ag 156 The silver deposit color is a good match on Stainless steel.
Its excellent fluidity promotes braze penetration. Close tolerances are recommended; 0.002 "" 0.005" for best performance. The final properties of a joint brazed with 56% Silver are dependent upon numerous factors including base metal properties, joint design and metallurgical interaction between the base metal and the filler metal.

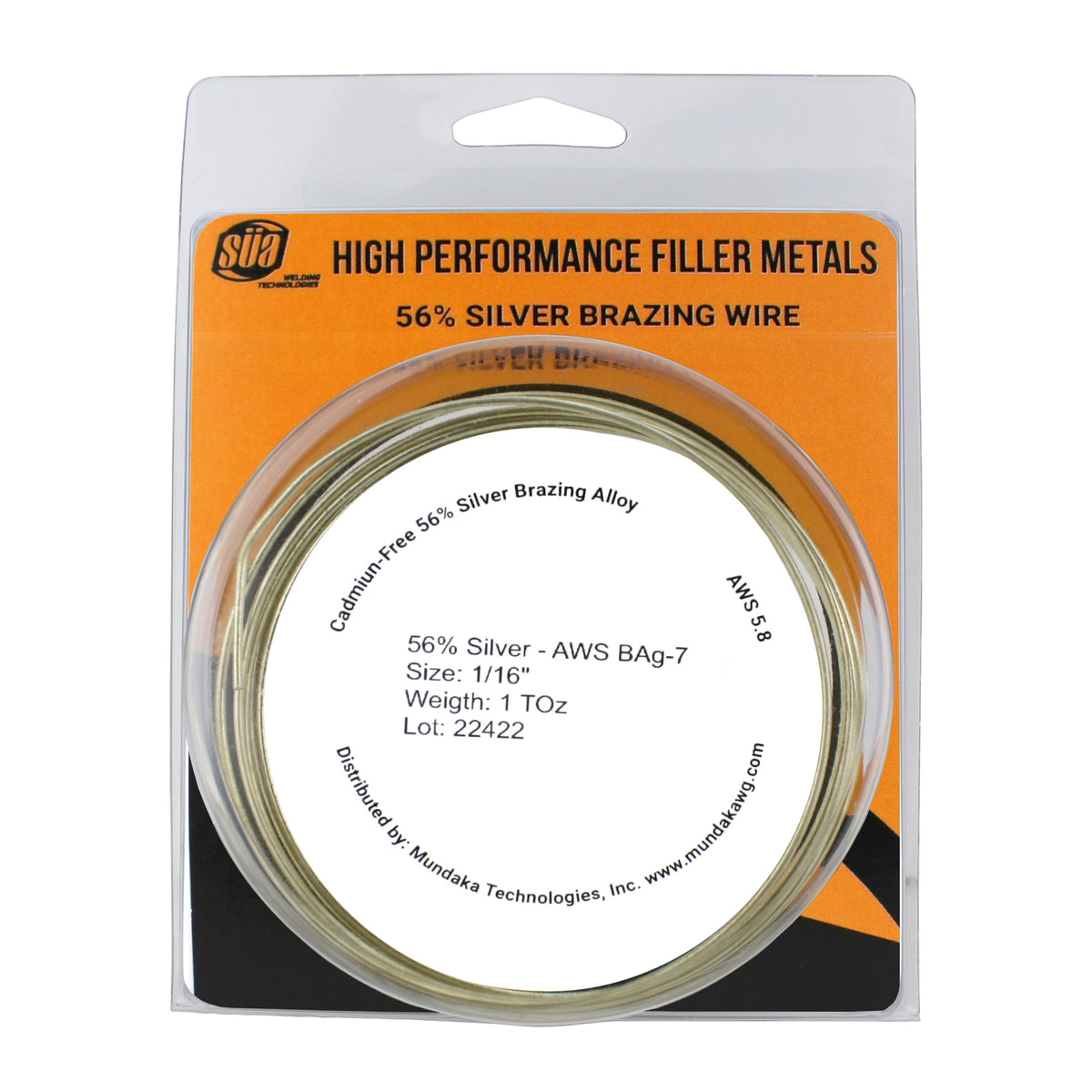

Diameter of wire: 1/16" - Weight of each coil: 1 TOz - Length of each 1 Toz coil: 6 feet - Available in 1, 3 and 5 Troy Ounces Packages. Select your option from the menu. WARNING: PROTECT yourself and others.
Read and unders and this information. FUMEs aND GASES can be hazardous to your health. HEAT RAYS, (infrared radiation) from flame or hot metal can injure eyes.
Before use, read, and unders and the manufacturers instructions, Material safety Data Sheets (MSDS), and your employer's safety practices. Keep your head out of fumes. use enough ventilation, exhaust at the flame, or heat source, to keep fumes and gases from your breathing zone and the general area.
Wear the correct eye, ear, and body protection. See American National StandardZ49.1, safety in Welding, Cutting, and Allied Processes, published by the American Welding Society, 8669 Doral Blvd., Doral, Florida 33166; Os a safety and Health standards, available from the U.S. Government Office, Washington, DC 20402.
