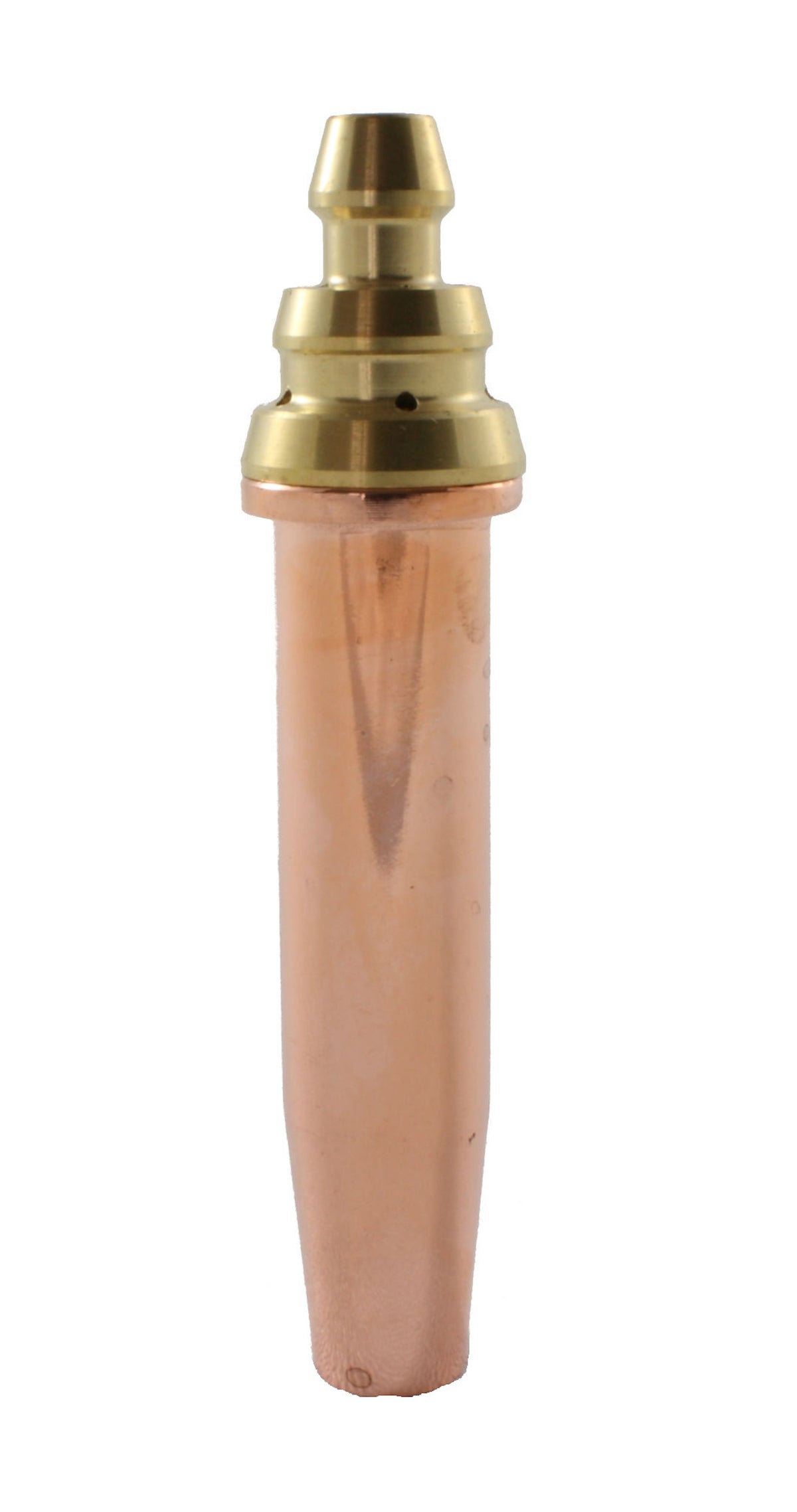

SÜA G03 Propane Machine Cutting Tips
$15.99
Available to orderNeed help choosing?
Send our team the part number and tell us about your setup.
Ask our team ↗KNOW WHAT YOU’RE BUYING
The details, made clear.
Product information
- G03 cutting tips for use with oxygen and propane.
- Compatible with matching Airco, Tanaka, Koike, AGA & Concoa machines; compare the tip dimensions and seat profile with your torch before ordering.
- Available sizes: 000, 00, 0–5.
- Choose a single tip or a 3-pack; select the size or assortment required.
- Use the G03 selection table below for cutting thickness, gas pressure and gas flow.
| Plate thickness (in) | G03 tip size | Oxygen (psi) | Oxygen (CFH) | Propane (psi) | Propane (CFH) | Drill size | Orifice (in) |
|---|---|---|---|---|---|---|---|
| 3/16 | 00 | 25 | 55 | 2 | 18 | #72 | .025 |
| 1/4–3/8 | 0 | 35–40 | 65–86 | 2–3 | 18–25 | #68 | .031 |
| 1/2 | 1 | 45 | 115 | 3 | 28 | #62 | .038 |
| 1 | 2 | 55 | 177 | 3 | 28 | #56 | .046 |
| 1-1/2 | 3 | 55 | 235 | 4 | 30 | #54 | .055 |
| 2-1/2 | 4 | 55 | 300 | 4 | 30 | #52 | .063 |
| 3 | 5 | 50 | 365 | 5 | 35 | #49 | .073 |
