ER5356 - WIRE - MIG (GMAW) – ALUMINUM
AWS A5.10
- ER5356, commonly referred to as “AlMg5,†is a 5% magnesium aluminum wire used for welding base metals 5050, 5052, 5083, 5356, 5454 and 5458
- This MIG wire has become the most widely used aluminum welding wire because of its compatibility with so many different base metals and better corrosion resistance in salt water
- Weld deposits have good ductility and higher tensile strength although it is not suitable for temperatures sustained above 150°F (65°C)
- Melting range is 1060°F – 1175°F, density is 0.096 lbs/in3 and post anodizing color is white

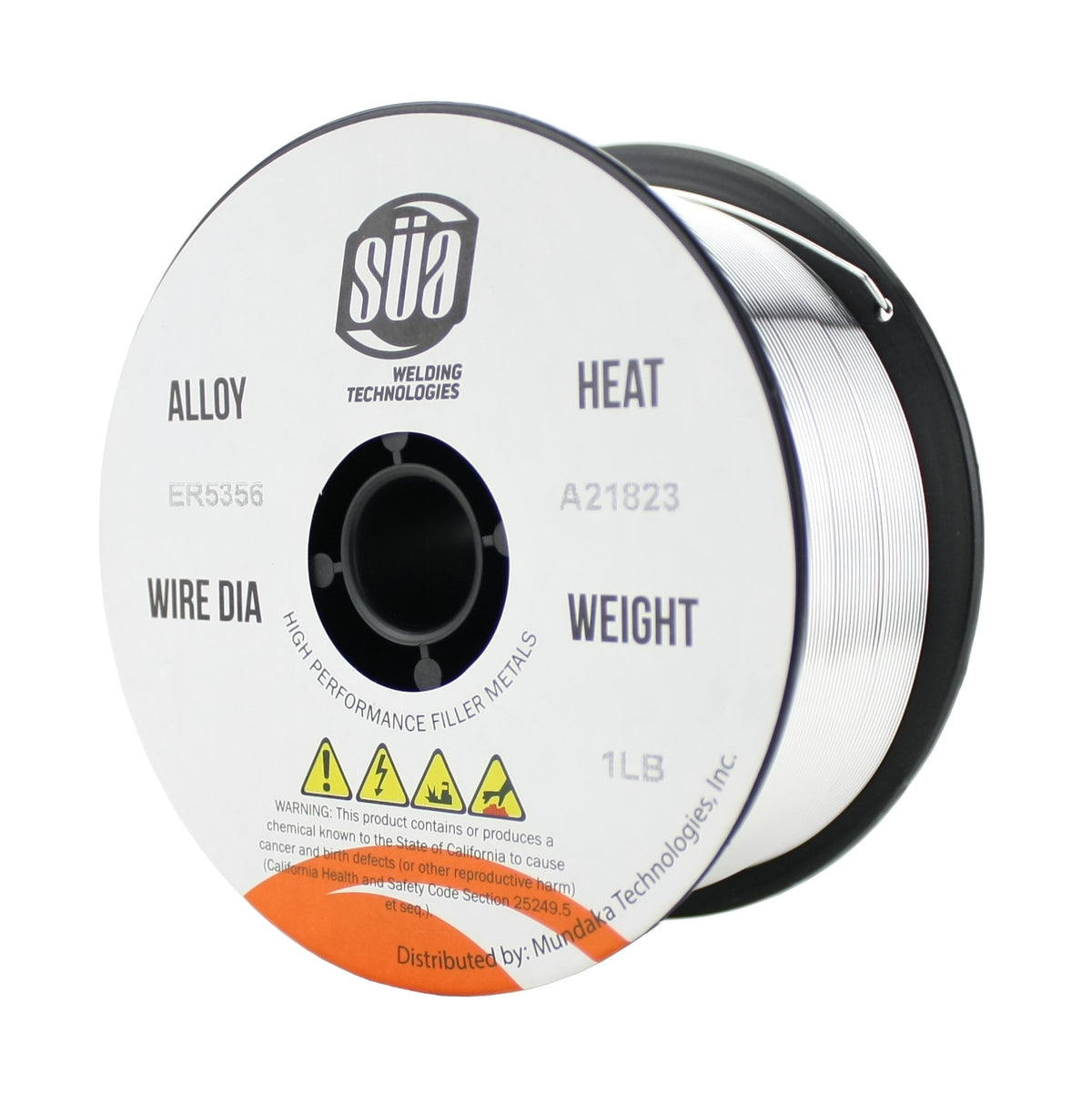

- You will receive 4 x 1-Pound Spool of ER5356 0.035" MIG Wire. (Check the links below for more MIG wire alloys, diameters, and quantities)
CHEMICAL COMPOSITION (%):
|
Chemical Composition |
Al |
Si |
Fe |
Cu |
Mn |
|
Requirement |
Balance |
≤0.25 |
≤0.4 |
≤0.1 |
0.05-0.2 |
|
Typical test result |
Balance |
0.06 |
0.10 |
0.03 |
0.11 |
|
Chemical Composition |
Mg |
Zn |
Ti |
Be |
Cr |
|
Requirement |
4.5-5.5 |
≤0.1 |
≤0.06-0.2 |
≤0.0003 |
0.05-0.2 |
|
Typical test result |
4.85 |
0.002 |
0.15 |
0.0002 |
0.09 |
ÂÂ
WELDING PARAMETERS (DC+):
|
Diameter |
WFS (ipm) |
Amps |
Volts |
(lb/100 ft) |
Argon (cfh) |
|
0.030†|
480-626 |
60-175 |
15-24 |
0.65-1.25 |
25-30 |
|
0.035†|
450-750 |
70-185 |
15-27 |
1.0-4.25 |
30-35 |
|
0.045†|
330-500 |
125-260 |
20-29 |
1.0-4.25 |
35-45 |
|
1/16†|
250-450 |
170-300 |
24-30 |
3.8-6.6 |
45-75 |
ÂÂ
Shielding Gas: 100% Argon, Argon / Helium Mixtures
The above parameters are for reference purpose and depend on diverse factors. Run tests, evaluate and set your welding parameters before starting the welding job.
