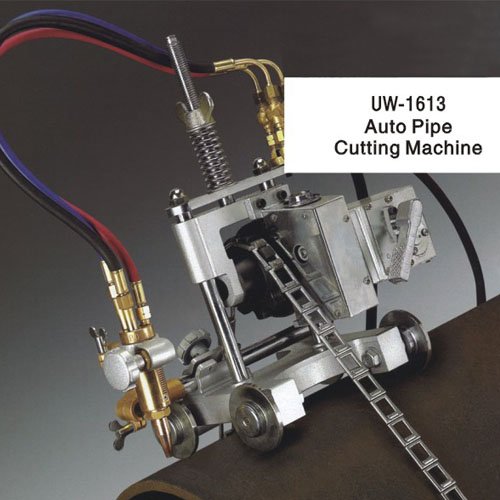

AUTOMATIC OXY-FUEL PIPE CUTTING/BEVELING MACHINE.

  • Sale
  • Regular price $1,650.00
  • 3 available


Auto Pipe Cutting Machine Application This machine is a remote control motorized Oxy-Fuel pipe cutting unit and with easy to change length of the chain for various size pipes. Features: Cutting can be done in clockwise or anti-clockwise direction from both sides of the machine. The machine can bevel up to 45? by selecting the required angle on the torch holder. The machine torch can be adjusted vertically and horizontally alongside the pipe surface by rack and pinion attachments. Remote control unit. Specifications: Weight: 35 lb. Size: 11 x 11 x 18 in. Power source: 110 V ? 10 Cutting speed: 5 ? 1150 mm/min (0.2 ? 45 in/min) Cutting thickness: 6 - 50 mm (0.2 ? 2 in) Cutting bevel: 45? Nozzles: G02 #1, 2 and 3 Airco/Concoa Style. Gases: Oxygen and Acetylene/LPG. Pipe cutting diameter: 150 ? 600 mm. Motor: 6000 rpm, 85 W.

  • Remote controlled motorized Oxy-Fuel pipe cutting unit
  • 1 torch
  • 3 tips Nº 1, 2 and 3.
  • Pipe cutting diameter: 150 – 600 mm. with standard tips.
  • Cutting thickness: 6 - 50 mm (0.2 – 2 in)
