This welding lead is assembled using Highly flexible, Made in the USA, Flex-A-Prene? cable. All our cable assemblies use over-calculated Electrode Holders, Ground Clamps, and Connectors with an amperage capacity always higher than the assembly amperage rating. This prevents over-heating and increases safety. Information on cable is ident marked so it doesn't fade with time for a better identification even after years of use - Resists abrasion, cut, tear, flame, grease, oil, and water. The is the only welding cable that currently meets SAE J1127. INSULATION: EDPM jacket and paper separator - TEMP RANGE: -50?C to +105?C (-58?F to 221?F) - Rated 600 Volts. ***Before you buy please double-check the type and size of the cable Connector/Receptacle in your welder, Also check the maximum Amperage and duty cycle of your welder and look for a cable assembly that matches or exceeds that amperage rating***

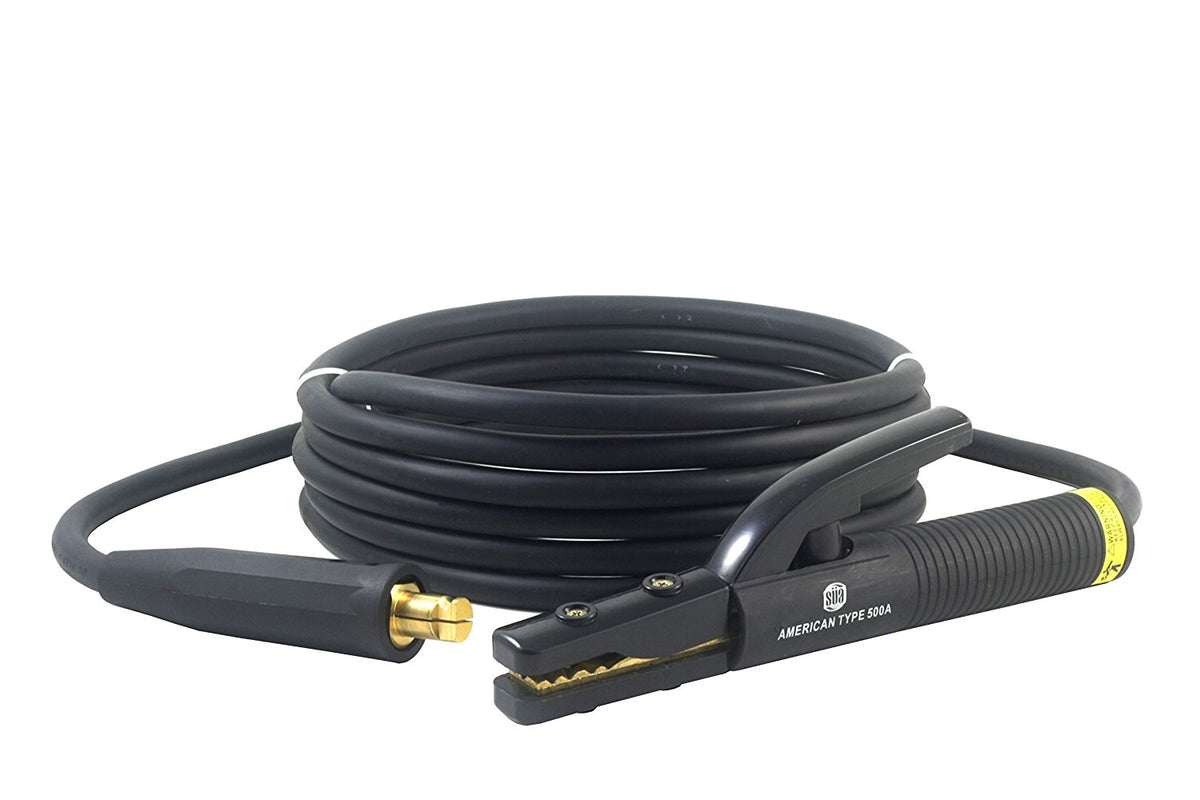

- Heavy Duty Welding Lead Assembly manufactured with Made in USA Flex-A-PreneÃ‚Â® highly flexible cable. Cable Size: 2/0 AWG - 0.568" O.D.
- Electrode Holder compatible with AF-50. Constructed with Heavy Duty Nylon body. High conductivity jaws and cable connectors. High strength coiled spring for a maximum grip of the electrode. Holds Electrodes up to 3/8".
- Dinse 70-95 Cable Connector. ***Please check connector size in the picture and compare with your welderÃ‚Â´s Connector/Receptacle to make sure it fits***
- RATED: 500 AMP @ 60% Duty Cycle. ***Please Check you welderÃ‚Â´s maximum amperage and look for a cable assembly that matches or exceeds that amperage rating***
- Cable Length: 100 Feet - You will receive a fully assembled lead, no tools required and ready to use.
