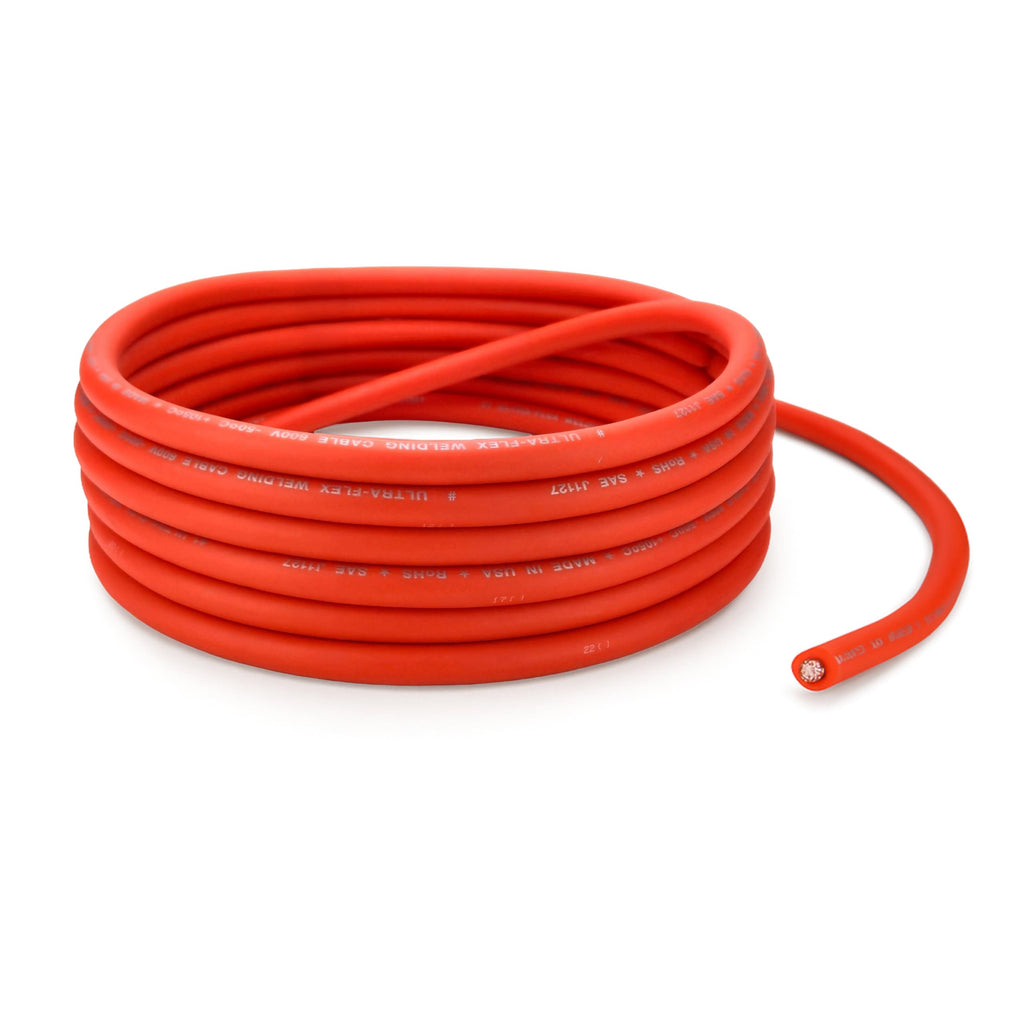

Coil of orange Ultra-Flex 2 AWG copper welding and battery cable with exposed cut ends.
Coil of orange Ultra-Flex 2 AWG copper welding and battery cable with exposed cut ends.
Ultra-Flex 2 AWG cable specification graphic with cable diameter, 600V rating and operating temperature range.

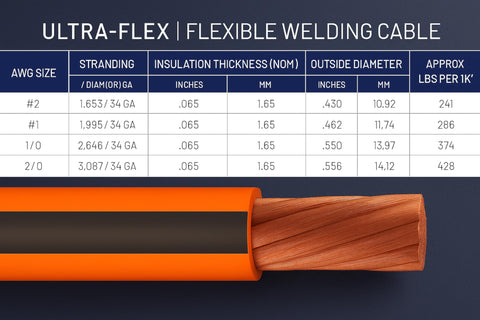

Ultra-Flex welding cable construction chart comparing AWG sizes, copper stranding, insulation thickness and outside diameter.

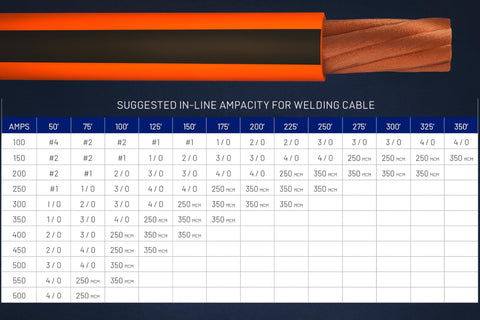

Ultra-Flex welding cable ampacity chart organized by welding current and cable length, with copper conductor illustration.
Welder using orange Ultra-Flex cable in a dark workshop, illustrating flexible cable routing.
Ultra-Flex Class M copper stranding graphic with welding, robotics and automation applications.
Ultra-Flex copper welding cable graphic highlighting USA manufacturing and SAE J1127, RoHS and NEC Article 630 references.
Ultra-Flex orange TPE cable jacket graphic illustrating abrasion, oil, fuel and battery acid resistance.

Ultra-Flex 2 AWG Copper Welding & Battery Cable, Orange

  • Sale
  • $62.99
  • Orange Ultra-Flex 2 AWG, 100% copper welding and battery cable, manufactured in the USA.
  • Class M conductor made with fine 34 AWG strands for flexibility and routing in tight spaces.
  • TPE jacket resists abrasion, oils, fuels, battery acid and transmission fluid.
  • Rated 600 volts. Operating temperature range: -50°C to +105°C (-58°F to +221°F).
  • Manufacturer specifications list SAE J1127, RoHS compliance and NEC Article 630 for welding applications.
  • Available lengths: 5, 10, 15, 20, 25, 30, 40, 50, 75, 100, 200 feet. Select the length of cable required; connectors are not included.

For welding leads and battery, inverter or equipment wiring where the cable specifications match the installation requirements. Select gauge and length for the required current and complete circuit.
