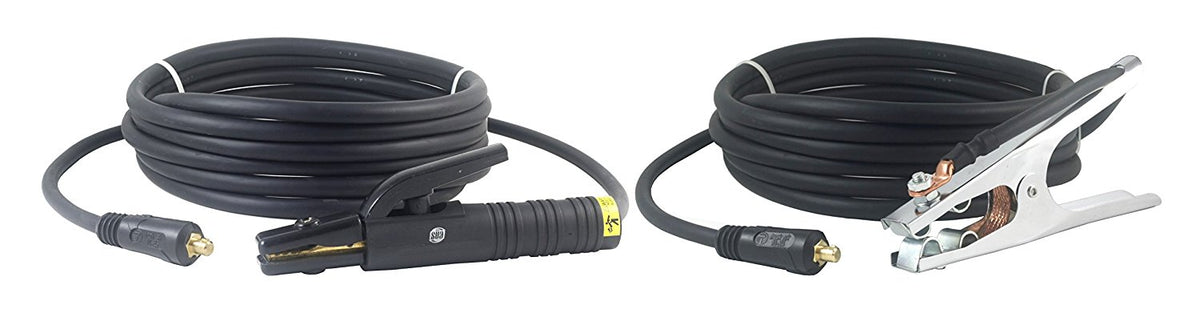

This welding lead is assembled using Highly flexible, Made in the US a, Flex-A-Prene cable. All our cable assemblies use over-calculated Electrode Holders, Ground Clamps, and Connectors with an amperage capacity always higher than the assembly amperage rating. This prevents over-heating and increases safety. Information on cable is ident marked so it doesn't fade with time for a better identification even after years of use - Resists abrasion, cut, tear, flame, grease, oil, and water. The is the only welding cable that currently meets s aE J1127.
INSULATION: EDPM jacket and paper separator - TEMP RANGE: -50C to +105C (-58F to 221F) - Rated 600 Volts. ***Before you buy please double-check the type and size of the cable Connector/Receptacle in your welder, Also check the maximum Amperage and duty cycle of your welder and look for a cable assembly that matches or exceeds that amperage rating*** List of welders with DINSE 10-25 cable connector: Miller: Maxs ar 150STL, 150STH, 161STL, 160TTH, Maxs ar 85S, 140, 140STR, 150S, 161S, Multimatic 200, 215. Lincoln: Invertec 100-S, V100-S, V130-S,V155-S. Es ab: ES 95i, Fabricator 141i, Miniarc 161LTS. Thermal Arc: 161S Others: Most Chinese and European welders and inverters with Dinse connector.
Up to 180-200 Amps. (CHECK WELDERS RECEPTACLE SIZE). Heavy Duty Welding Lead Assembly manufactured with Made in US a Flex-A-Prene highly flexible cable. Cable Size: #4 AWG - 0.343" O.D. Electrode Holder compatible with AF-3.
Heavy Duty Nylon body. High conductivity jaws. High strength coiled spring for a maximum grip of the electrode. Holds Electrodes up to 1/4". Ground Clamp compatible with EG-300.
Constructed in Zinc-Plated Steel. Large hex screw cable connection assures a tight and safe cable connection. It has a large contact area for an effective ground connection. Its design eliminates arc blowing and facilitates fast grounding spot changing Dinse 10-25 Cable Connector. ***Please check connector size in the picture and compare with your welders Connector/Receptacle to make sure it fits*** RATED: 150 AMP @ 60% Duty Cycle.
***Please Check you welders maximum amperage and look for a cable assembly that matches or exceeds that amperage rating*** Cable Lengths: Two leads of 100 feet long each one.- You will receive two fully assembled leads, no tools required and ready to use.
