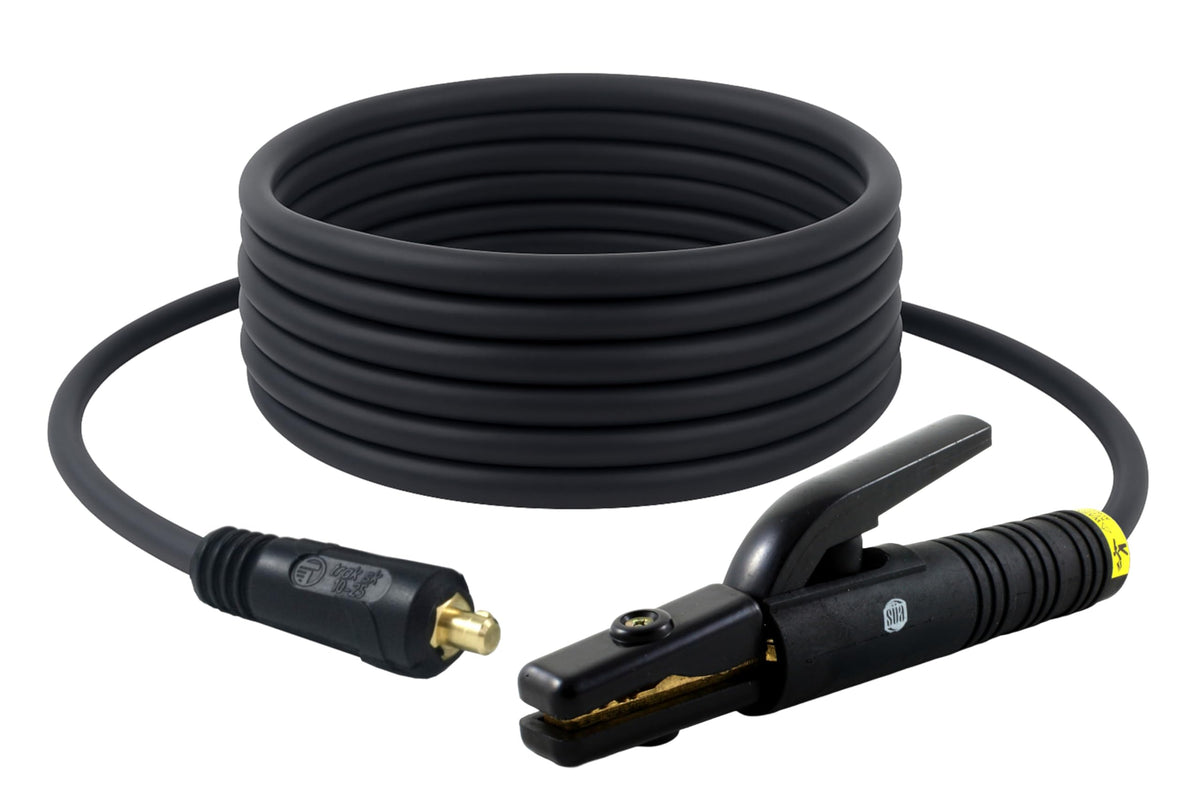

150 Amp Welding Electrode Holder Lead Assembly - #4 AWG cable

  • Sale
  • Regular price $51.00

This welding lead is assembled using Highly flexible, Made in the USA, Flex-A-Prene cable. All our cable assemblies use over-calculated Electrode Holders, Ground Clamps, and Connectors with an amperage capacity always higher than the assembly amperage rating. This prevents over-heating and increases safety. Information on cable is ident marked so it doesn't fade with time for a better identification even after years of use - Resists abrasion, cut, tear, flame, grease, oil, and water. The is the only welding cable that currently meets SAE J1127. INSULATION: EDPM jacket and paper separator - TEMP RANGE: -50ºC to +105?C (-58?F to 221?F) - Rated 600 Volts. ***Before you buy please double-check the type and size of the cable Connector/Receptacle in your welder, Also check the maximum Amperage and duty cycle of your welder and look for a cable assembly that matches or exceeds that amperage rating*** List of welders with DINSE 10-25 cable connector: Miller?: Maxstar 150STL, 150STH, 161STL, 160TTH, Maxstar 85S, 140, 140STR, 150S, 161S, Multimatic 200, 215. Lincoln: Invertec 100-S, V100-S, V130-S, V155-S. Esab: ES 95i, Fabricator 141i, Miniarc 161LTS. Thermal Arc: 161S Others: Most Chinese and European welders and inverters with Dinse connector. Up to 180-200 Amps. (CHECK WELDER?S RECEPTACLE SIZE).

  • Heavy Duty Welding Lead Assembly manufactured with Made in USA Flex-A-Prene® highly flexible cable. Cable Size: #4 AWG - 0.343" O.D.
  • Ground Clamp compatible with EG-300. Constructed in Zinc-Plated Steel. Large hex screw cable connection assures a tight and safe cable connection. It has a large contact area for an effective ground connection. Its design eliminates arc blowing and facilitates fast grounding spot changing
  • Dinse 10-25 Cable Connector. ***Please check connector size in the picture and compare with your welder´s Connector/Receptacle to make sure it fits***
  • RATED: 150 AMP @ 60% Duty Cycle. ***Please Check you welder´s maximum amperage and look for a cable assembly that matches or exceeds that amperage rating***
  • Cable Length: 50 Feet - You will receive a fully assembled lead, no tools required and ready to use.
