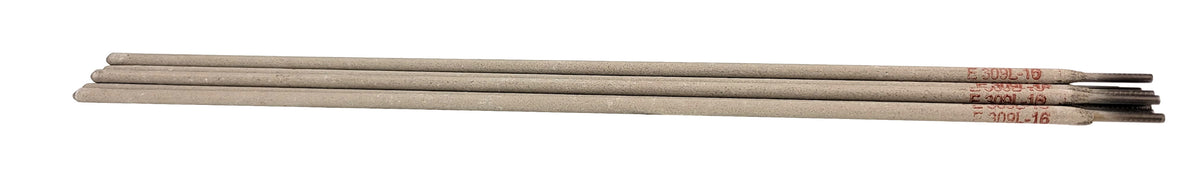

E309L-16 STAINLESS STEEL ELECTRODE AWS A5.4 Welding Positions: All, except vertical down AC & DC+ (reverse polarity) INTRODUCTION: Rutile-basic coated, high-alloy stick electrode. Designed for joining stainless steel to mild or low alloy steel. Can be welded in any position except vertical down. Joint welding on heat-resistant CrNi steels. Self-removing slag, very low spatter tendency. For dissimilar joints and buffer layers. Excellent ignition and re-ignition characteristics. Maximum operating temperature 300 ?C APPLICATIONS: Austenite-ferrite joints (dissimilar), cladding, corrosion-resistant layers on non-alloyed construction steels, buffer layers. Joining stainless steel to mild or low alloy steel WELDING PARAMETERS: Polarity Current (Amps) 3/32? (2.4 mm) 1/8? (3.2 mm) 5/32? (4.0 mm) DC+ 40-70 60-100 90-140 AC 40-70 60-100 90-140 CHEMICAL COMPOSITION (%): Chemical Composition C Mn Si S P Requirement ?0.15 0.50 ~ 2.50 ?1.00 ?0.030 ?0.040 Typical test result 0.055 1.45 0.70 0.009 0.021 Chemical Composition Cr Ni Mo Cu Requirement 22.0 ~ 25.0 12.0 ~ 14.0 ?0.75 ?0.75 Typical test result 24.25 12.75 0.035 0.10 MECHANICAL PROPERTIES OF DEPOSITED METAL: Test Item Rm(N/mm2) A (%) Requirement ?550 ?25 Typical test result 595 40 The above parameters are for reference purpose and depend on diverse factors. Run tests, evaluate and set your welding parameters before starting the welding job.
- Rutile-basic coated, high-alloy stick electrode. Designed for joining stainless steel to mild or low alloy steel
- Can be welded in any position except vertical down
- Every Package comes with Material Certification
- APPLICATIONS: Austenite-ferrite joints (dissimilar)
- Package of 1/2 Lb
