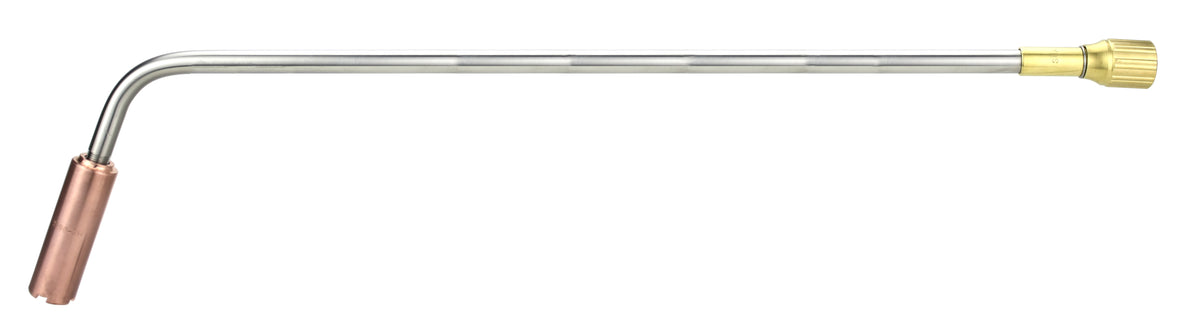

SÜA 2290H Oxy-Propane Rosebud Heating Tip & Tube Kit

  • Sale
  • $50.99

Multi-flame 2290H rosebud tip for compatible oxy-propane heating applications.

  • Choose size 1, 2, 3, 4 or 5; gas demand and heating output depend on tip size.
  • Kit includes the selected tip, 2393 tube and E2-43 mixer. Choose 10.5-, 28- or 36-inch tube.

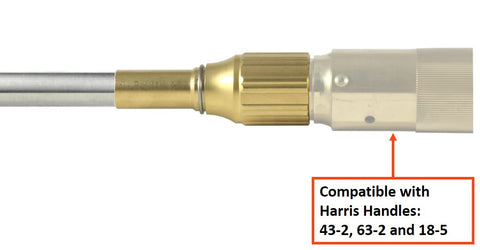

  • E2-43 setup fits Harris-style 43-2, 63-2 and 18-5 handles. Torch handle is not included.

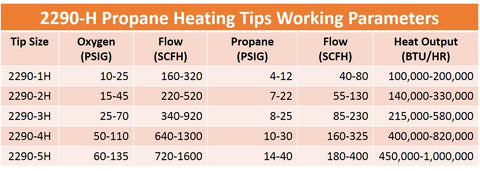

  • Use the tip-specific working-parameter chart to match the gas supply and equipment capacity.
