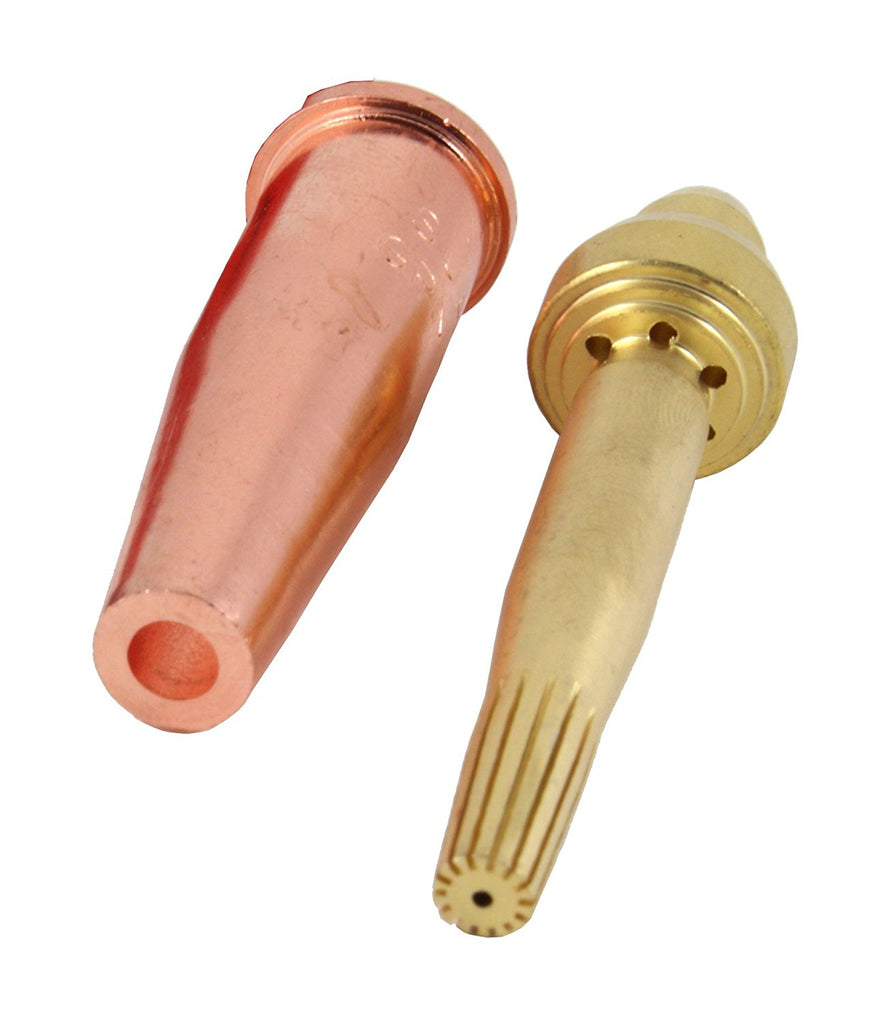

Two-piece cutting tip with copper shell separated from brass insert
Two-piece cutting tip with copper shell separated from brass insert

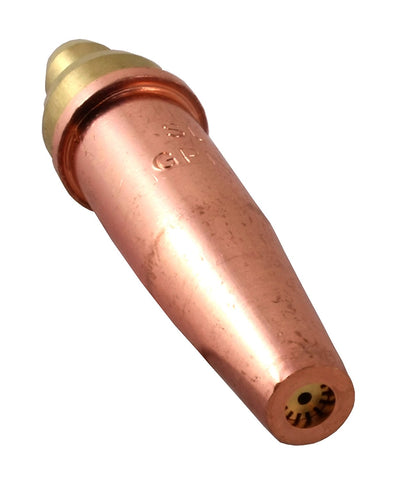

Cutting end of a copper-shell oxy-fuel tip
Brass seating end of a two-piece cutting tip

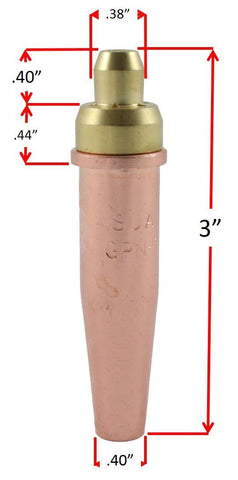

Oxy-fuel cutting tip dimension drawing

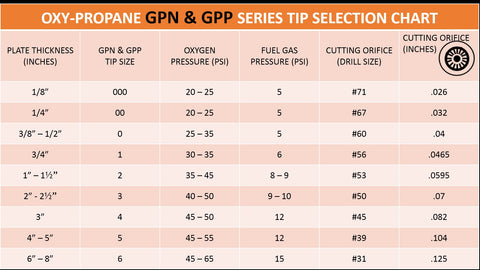

GPN and GPP cutting-tip selection chart with gas pressures
Two-piece cutting tip with copper shell separated from brass insert

SÜA GPP Propylene Cutting Tip Set for Victor, Sizes 3 & 4

  • Sale
  • $20.99
  • GPP cutting tips for use with oxygen and propylene.
  • Compatible with Victor Series 1; compare the tip dimensions and seat profile with your torch before ordering.
  • Available sizes: 3 and 4.
  • Set includes two tips: one size 3 and one size 4.
  • Use the size-specific cutting chart for thickness, pressure and gas-flow requirements.
  • Size 4 requires a 3/8-inch I.D. hose to provide the specified gas flow.
