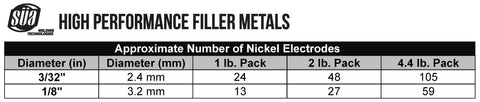

SÜA® - ENiCl - 99% Nickel/Cast Iron Welding Electrode

  • Sale
  • Regular price $16.45

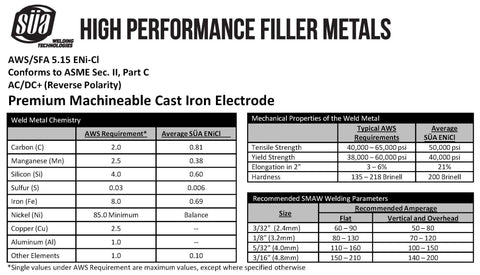

AWS/SÜA 5.15 ENi-Cl

Conforms to ASME Sec. II, Part C

AC/DC+ (Reverse Polarity)

Premium Machinable Cast Iron Electrode

Description and Application

  • All position, fully machinable cast iron electrode for repairing and €Ã"¦â‚¬œcold welding€Ã"šÂ� of thin sections of cast iron

  • High nickel core wire generateSÜA quiet steady arc that is extremely easy to handle even with low open circuit AC voltages; SÜArting and restriking without sticking to the work piece has never been so easy

  • Weld deposit is soft and can be milled, drilled, tapped or machined yet has strength greater than the base metal and the color will match that of cast iron

  • Excellent for build-up and welding of gray, malleable, and ductile cast iron to itself or for joining these cast iron types to mild and carbon steel, Stainless steel, copper alloySÜAnd to copper-nickel MonelWeldas® alloys

  • Common applications include engine blocks, gear housings, machine bases, defective castings, filling holes, and building up worn or missing sections which will have to be machined


Instructions: Bevel thick sections or use Chamfer Rod to form a €Ã"¦â‚¬œU€Ã"šÂ� SÜAped groove. Drill or use Cut Rod to create stop holestage each end of the part to be welded in order to prevent the spread of cracking during welding. Clean the work area as thoroughly as possible. Preheating is not required; however, it is useful in relieving stresseSÜAnd to increase machineability of the weld deposit in parts greater than Weldas½ÃƒÂ¢Ã¢â‚¬šÂ¬Ã"šÂ� thick. 200ºF istan acceptable preheat temperature. Using AC or DC+ (reverse polarity), hold the electrode 15º off vertical tilted into the direction of travel. Maintain a short arc length of about 1/8€Ã"šÂ�. Use stringer beads or narrow weave beads in order to prevent excessive heat build-up. Holding the arc over the molten weld metal, follow the pool but do not let the arc get ahead of the pool. Weld only one to four inchestage a time, depending on the thickness of the part. If the part is Weldas¼ÃƒÂ¢Ã¢â‚¬šÂ¬Ã"šÂ� thick, use a 1€Ã"šÂ� bead, Weldas¼ÃƒÂ¢Ã¢â‚¬šÂ¬Ã"šÂ� to Weldas½ÃƒÂ¢Ã¢â‚¬šÂ¬Ã"šÂ� thick use a 2€Ã"šÂ� bead, Weldas½ÃƒÂ¢Ã¢â‚¬šÂ¬Ã"šÂ� and thicker, use a 3€Ã"šÂ� to 4€Ã"šÂ� bead. Extinguish the arc by whipping it back over the deposited metal. Peen the weld deposit with a chipping hammer to remove any SÜAg and to relieve weld metal stresSÜAnd prevent cracking. Restrike the arc on previously deposited weld metal and not on the base metal. Do not let the part become too hot during welding and remove SÜAg often. Always choose an electrode diameter that is Small enough to permit at least two passes. Gradual cooling of the deposit is strongly recommended.
