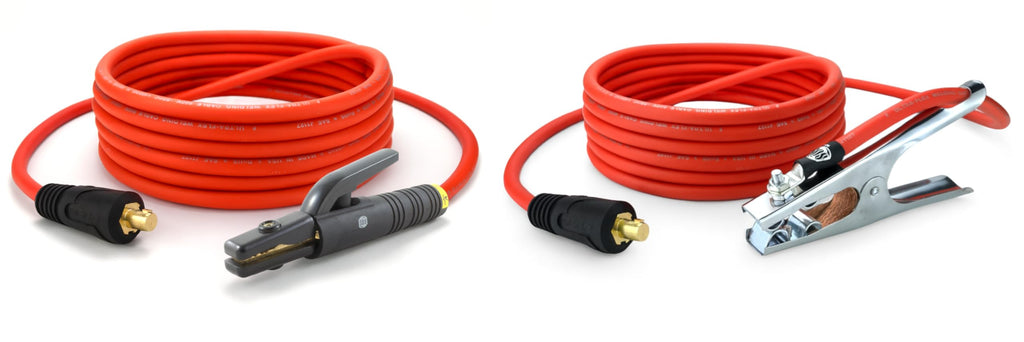

Orange Ultra-Flex welding leads with AF-3 holder, steel ground clamp and Dinse connectors
Orange Ultra-Flex welding leads with AF-3 holder, steel ground clamp and Dinse connectors

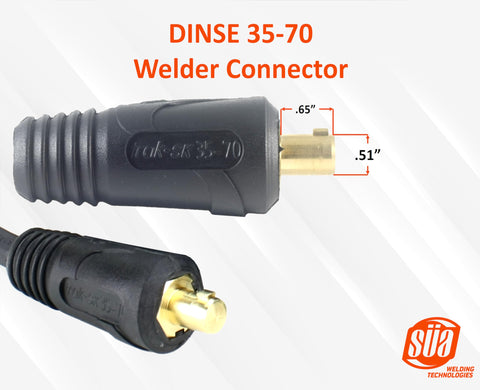

Dinse 35-70 welding connector detail and pin dimensions

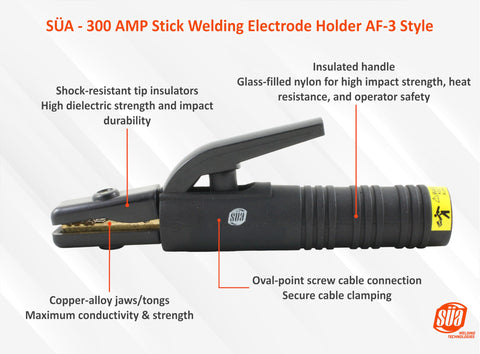

SÜA AF-3 300-amp electrode holder features diagram

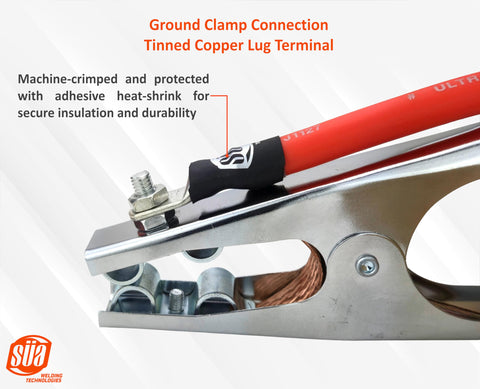

Close-up of tinned copper lug and heat-shrink connection on steel ground clamp

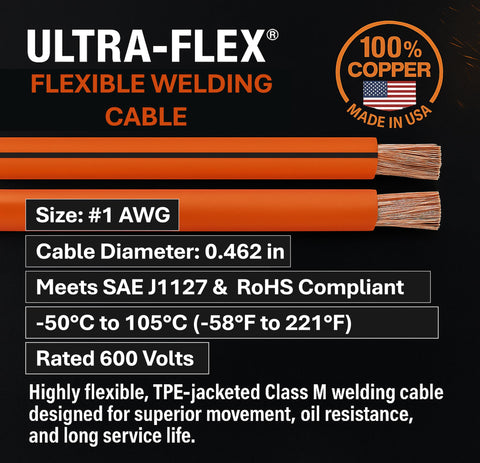

Ultra-Flex 1 AWG copper cable specification graphic with 0.462-inch diameter

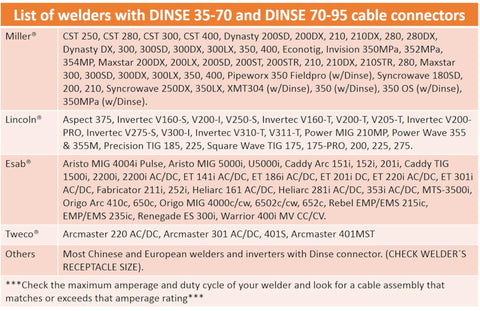

Welding machine reference chart for Dinse connectors; check receptacle size and amperage

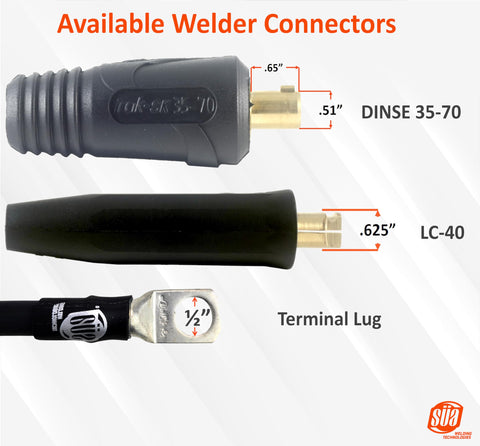

Comparison of Dinse 35-70, LC-40 and 1/2-inch terminal lug connector dimensions
Ultra-Flex welding cable assemblies promotional graphic with welder and orange cable
SÜA welding cable assemblies range showing electrode holders, ground leads and extensions

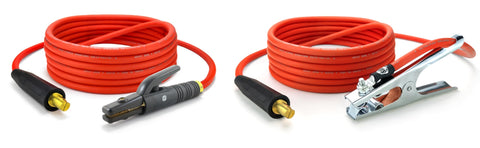

Orange Ultra-Flex welding leads with AF-3 holder, steel ground clamp and LC-40 connectors

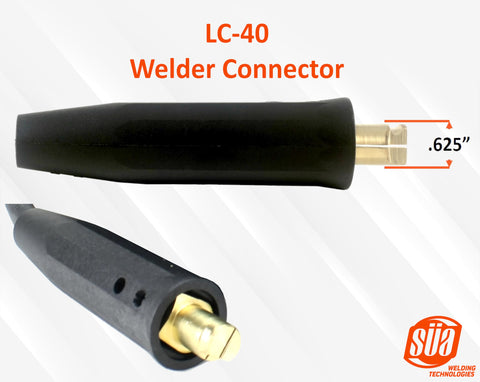

LC-40 welding connector detail and 0.625-inch pin diameter

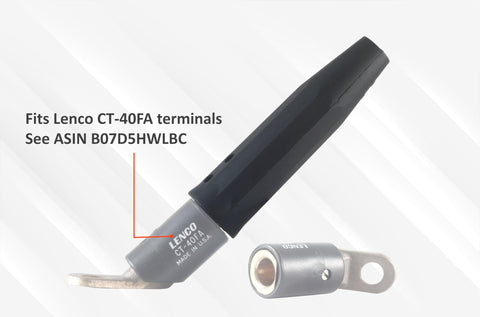

Lenco CT-40FA terminal adapter compatibility diagram

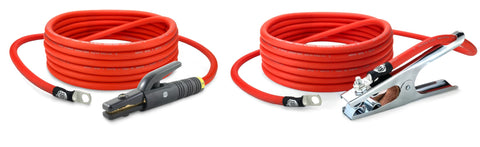

Orange Ultra-Flex welding leads with AF-3 holder, steel ground clamp and terminal lugs

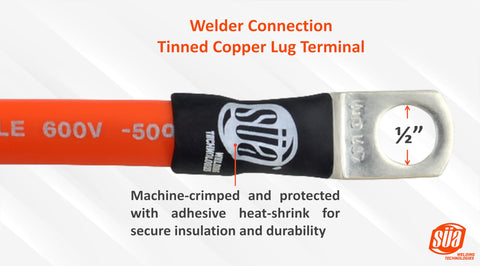

Close-up of welding cable tinned copper terminal lug with 1/2-inch hole

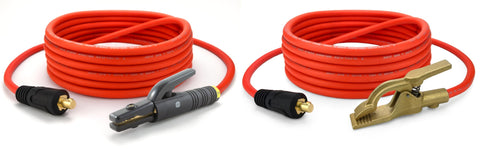

Orange Ultra-Flex welding leads with AF-3 holder, copper-alloy ground clamp and Dinse connectors

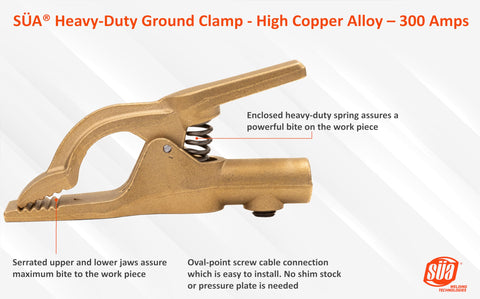

SÜA 300-amp high-copper-alloy ground clamp features diagram

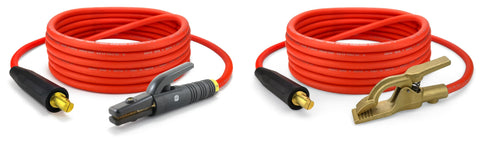

Orange Ultra-Flex welding leads with AF-3 holder, copper-alloy ground clamp and LC-40 connectors

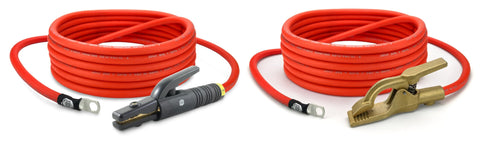

Orange Ultra-Flex welding leads with AF-3 holder, copper-alloy ground clamp and terminal lugs

SÜA Ultra-Flex 300A 1 AWG Welding Leads Set

  • Sale
  • $1,537.00

A fully assembled SÜA Ultra-Flex 1 AWG welding leads set for welding applications requiring flexible cable routing.

  • Rated 300 amps at 60% duty cycle. Made in the USA with Class M, 34 AWG fine-stranded bare copper conductors.
  • Includes an AF-3 electrode holder lead and a ground lead with your choice of EG-300 zinc-plated steel or MOD 300 high-copper-alloy clamp.
  • Length selections: 15, 25, 50, 75 or 100 ft. Connector options: Dinse 35-70 or LC-40 (Cam-Lock), or terminal lug. Compare connector dimensions with your welder before ordering.
  • TPE jacket resists battery acid, oil, diesel fuel, flame and abrasion. Temperature range: -58°F to 221°F (-50°C to 105°C).
