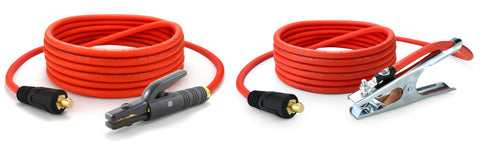

Orange UltraFlex lead set with steel ground clamp and Dinse 10-25 connectors

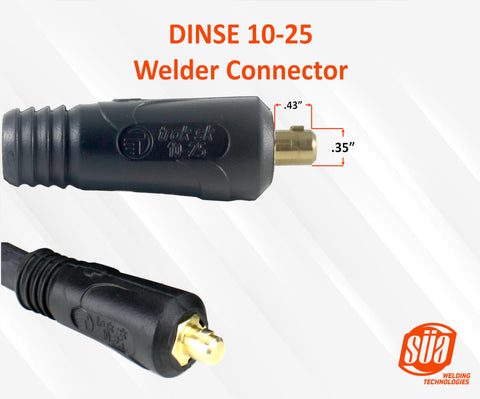

Dinse 10-25 welding connector dimension diagram

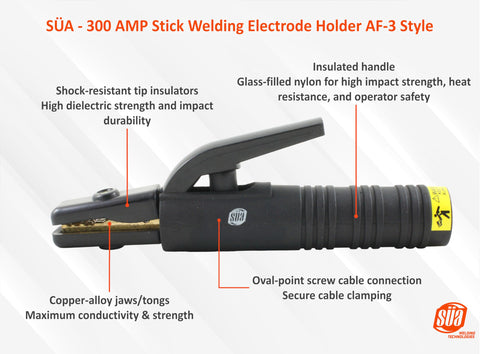

SÜA AF-3 electrode holder feature diagram

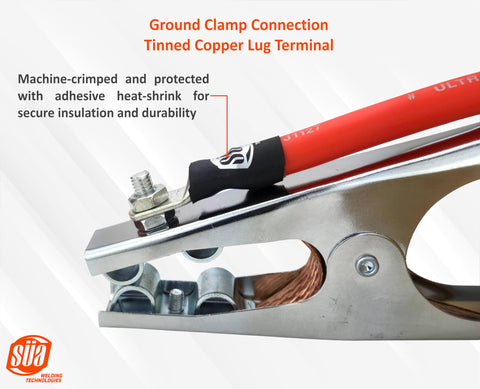

Steel ground clamp crimped cable connection detail

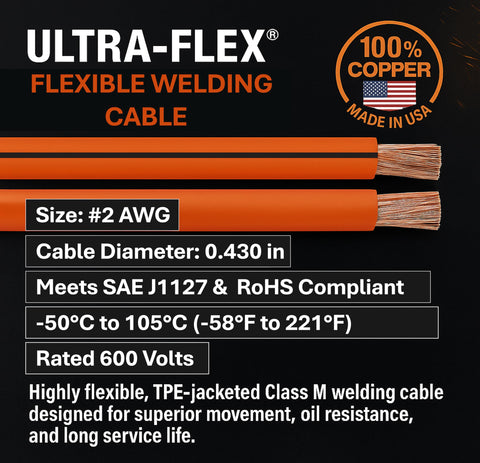

UltraFlex #2 AWG welding cable specification graphic

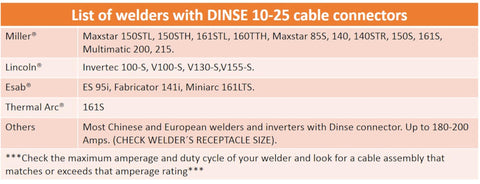

Dinse 10-25 welder connector reference chart

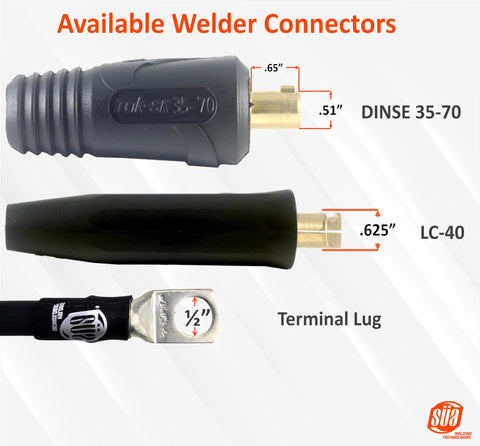

Welding connector comparison: Dinse 35-70, LC-40 and ring lug
UltraFlex welding cable application graphic
SÜA orange welding cable assembly product family graphic

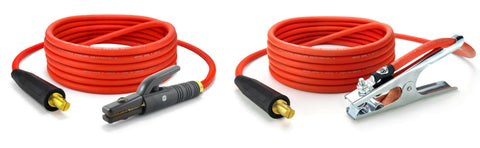

Orange UltraFlex lead set with steel ground clamp and Dinse 35-70 connectors

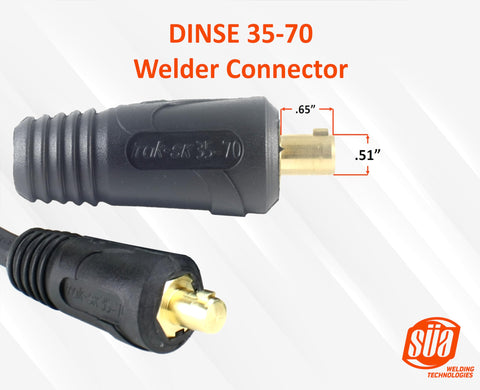

Dinse 35-70 welding connector dimension diagram

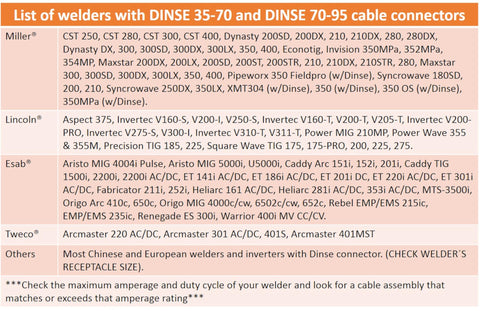

Dinse 35-70 and 70-95 welder connector reference chart
Orange UltraFlex lead set with steel ground clamp and LC-40 connectors

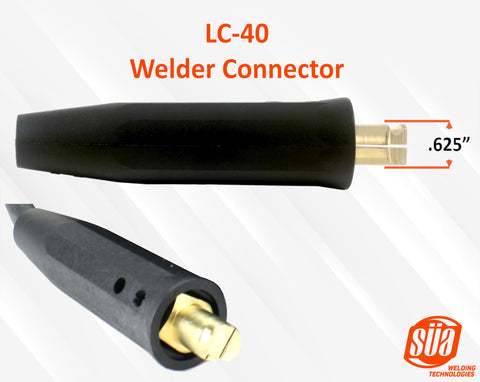

LC-40 welding connector dimension diagram

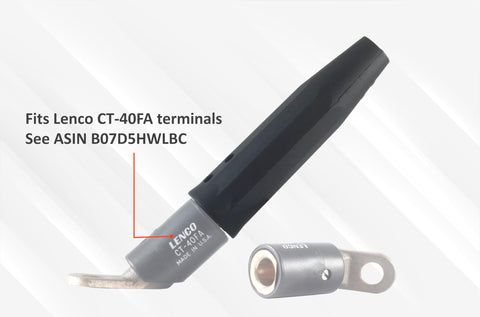

LC-40 connector and CT-40FA stud terminal illustration

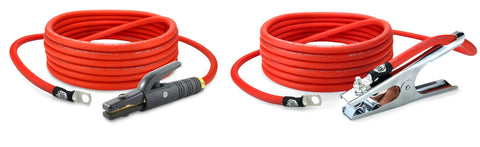

Orange UltraFlex lead set with steel ground clamp and ring lugs

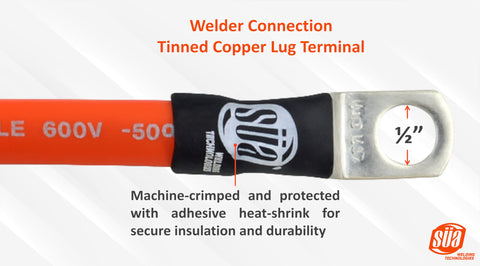

Tinned copper ring lug with 1/2-inch hole, close-up

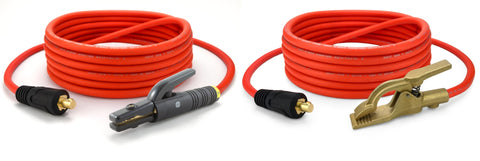

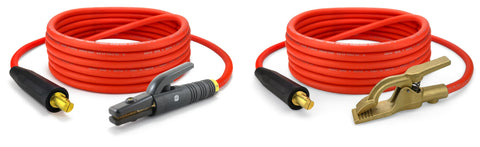

Orange UltraFlex lead set with copper ground clamp and Dinse 10-25 connectors

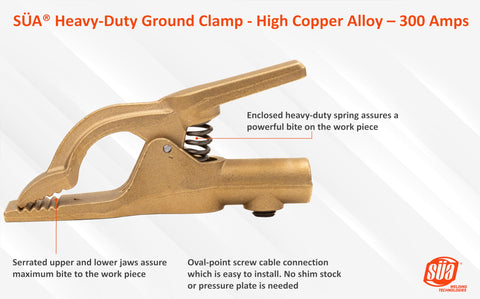

SÜA Model 300 copper ground clamp feature diagram

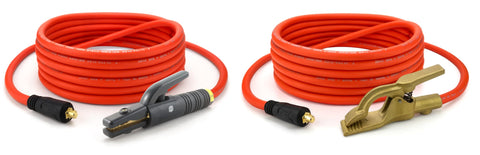

Orange UltraFlex lead set with copper ground clamp and Dinse 35-70 connectors
Orange UltraFlex lead set with copper ground clamp and LC-40 connectors

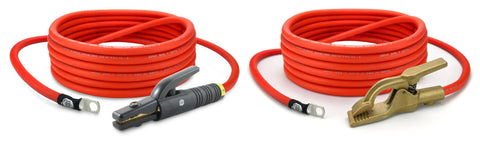

Orange UltraFlex lead set with copper ground clamp and ring lugs

SÜA Ultra-Flex 200A Welding Lead Set, #2 AWG

  • Sale
  • $1,253.00

Ultra-Flex welding lead set rated 200A at 60% duty cycle, with #2 AWG Class M copper cable.

  • Cable made in the USA, with 34 AWG fine-stranded conductors and TPE jacket. Temperature range: -50°C to +105°C.
  • AF-3 electrode holder with copper-alloy jaws; accepts electrodes up to 1/4 inch.
  • Choose EG-300 zinc-plated steel or MOD 300 high-copper ground clamp.
  • Set includes an electrode-holder lead and a ground-clamp lead.
  • Choose 15, 25, 50, 75 or 100 feet and Dinse 10-25, Dinse 35-70, LC-40 or terminal lug. Confirm the complete configuration in the menu.
  • Supplied assembled. Match connector dimensions, current rating and duty cycle to the welder.
