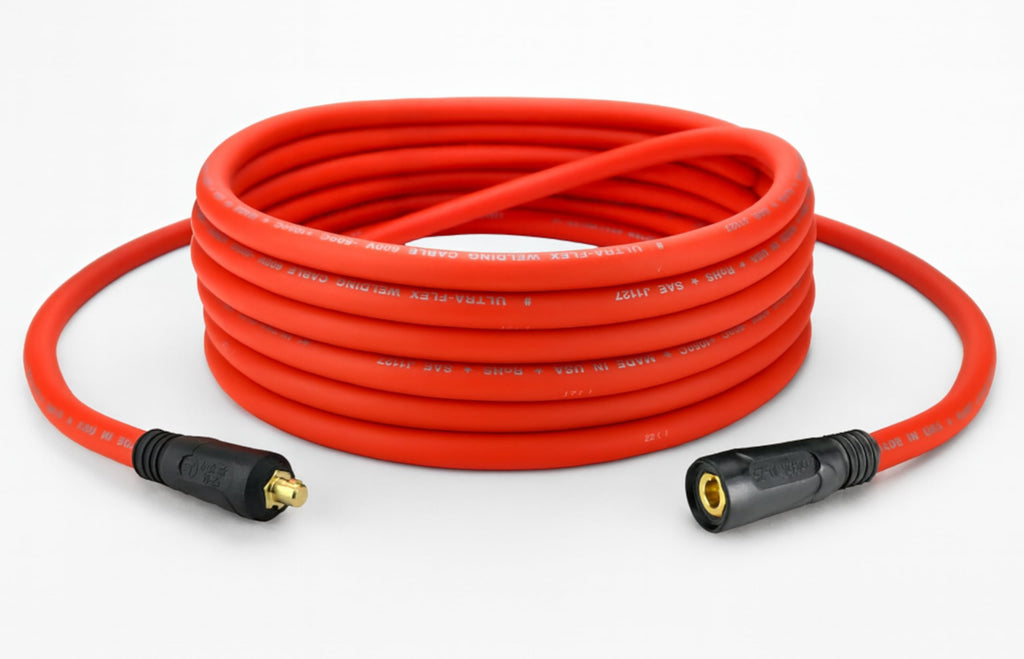

SÜA Ultra-Flex 2 AWG welding cable extension with Dinse 10-25 male and female connectors
SÜA Ultra-Flex 2 AWG welding cable extension with Dinse 10-25 male and female connectors

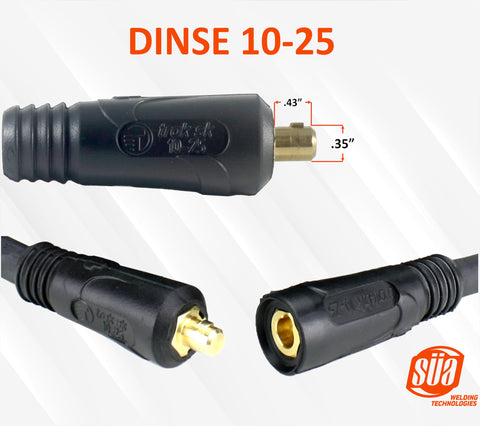

Dinse 10-25 male and female welding connector dimensions

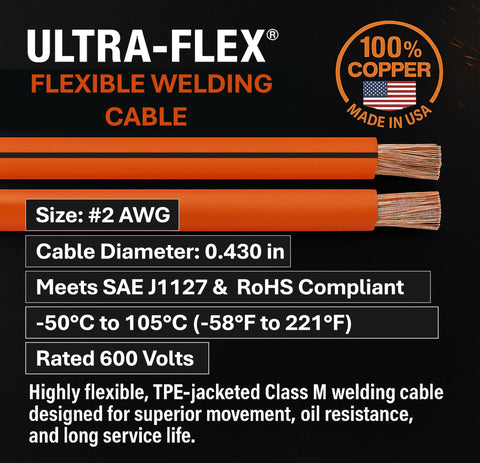

Ultra-Flex 2 AWG copper welding cable specification chart

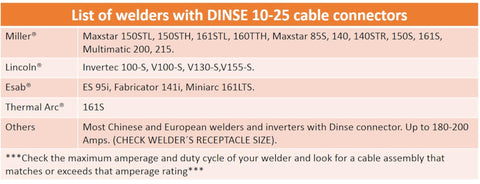

Dinse 10-25 welder connector compatibility chart

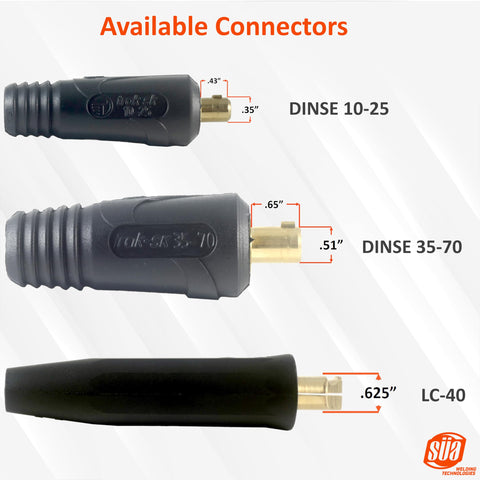

Dinse 10-25, Dinse 35-70 and LC-40 connector comparison
SÜA Ultra-Flex cable assembly flexibility and application graphic
SÜA welding cable assemblies: holders, ground leads and extensions

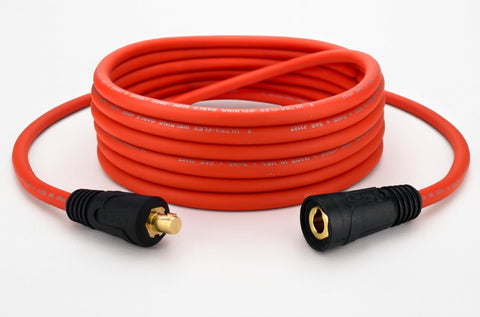

SÜA Ultra-Flex 2 AWG welding extension with Dinse 35-70 connectors

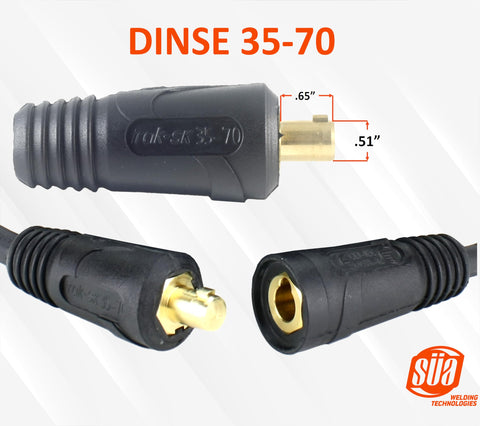

Dinse 35-70 male and female welding connector dimensions

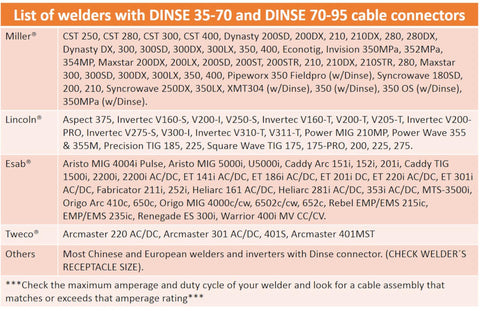

Dinse 35-70 and 70-95 welder connector reference chart

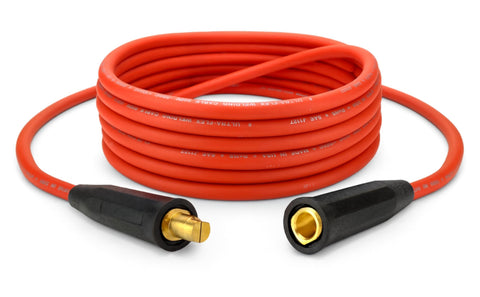

SÜA Ultra-Flex 2 AWG welding extension with LC-40 connectors

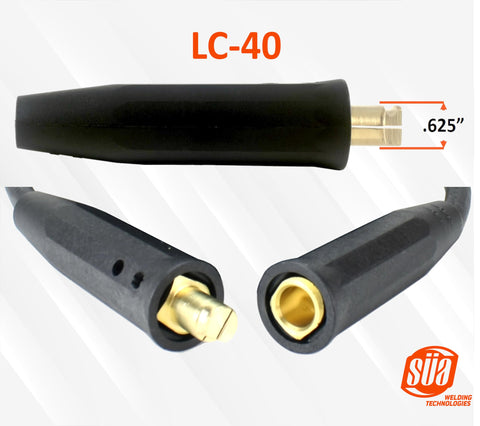

LC-40 male and female welding connector dimensions

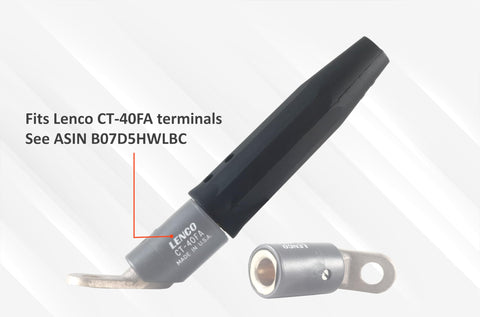

LC-40 cam-lock connector and terminal illustration

SÜA Ultra-Flex 200A Welding Cable Extension, 2 AWG Copper

  • Sale
  • $761.00
  • Welding lead extension made with USA-manufactured Ultra-Flex 2 AWG, 100% copper cable; rated 200 amps at 60% duty cycle.
  • Class M construction with fine 34 AWG strands for flexibility and a TPE jacket resistant to oil, diesel fuel, battery acid, flame and abrasion.
  • Operating temperature range: -50°C to +105°C (-58°F to +221°F).
  • One male and one female connector. Choose Dinse 10-25, Dinse 35-70 or LC-40 cam-lock, and check connector dimensions against your existing leads.
  • Available lengths: 15, 25, 50, 75 or 100 feet. Supplied fully assembled.

An extension adds reach between compatible welding leads and equipment in fabrication, shipyard and pipeline work. Select the cable length and rating for your complete welding circuit.
