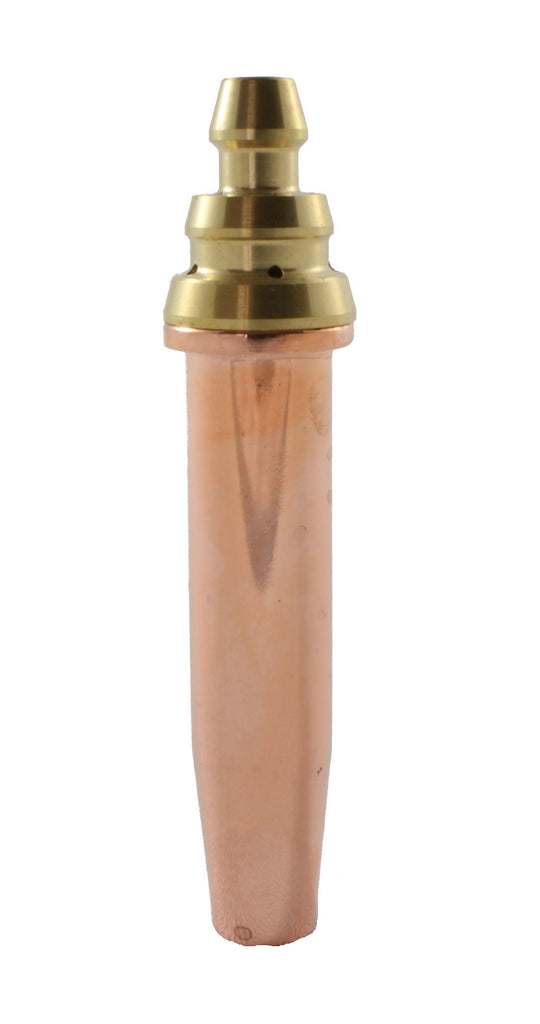

SÜA G03 Propane Machine Cutting Tips
- G03 cutting tips for use with oxygen and propane.

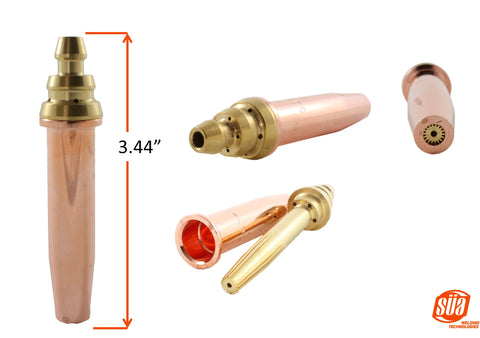

- Compatible with matching Airco, Tanaka, Koike, AGA & Concoa machines; compare the tip dimensions and seat profile with your torch before ordering.
- Available sizes: 000, 00, 0–5.
- Choose a single tip or a 3-pack; select the size or assortment required.
- Use the G03 selection table below for cutting thickness, gas pressure and gas flow.
G03 oxy-propane cutting-tip selection chart
| Plate thickness (in) |
G03 tip size |
Oxygen (psi) |
Oxygen (CFH) |
Propane (psi) |
Propane (CFH) |
Drill size |
Orifice (in) |
| 3/16 |
00 |
25 |
55 |
2 |
18 |
#72 |
.025 |
| 1/4–3/8 |
0 |
35–40 |
65–86 |
2–3 |
18–25 |
#68 |
.031 |
| 1/2 |
1 |
45 |
115 |
3 |
28 |
#62 |
.038 |
| 1 |
2 |
55 |
177 |
3 |
28 |
#56 |
.046 |
| 1-1/2 |
3 |
55 |
235 |
4 |
30 |
#54 |
.055 |
| 2-1/2 |
4 |
55 |
300 |
4 |
30 |
#52 |
.063 |
| 3 |
5 |
50 |
365 |
5 |
35 |
#49 |
.073 |
