Nitrogen/Inert Gas - Single Stage 0-1400 PSI, High Pressure Regulator, CGA-580

  • Sale
  • Regular price $188.60


Please note that Delivery Pressure Gauge reads up to 4500 PSI. But this regulator delivery pressure range is 0-1400 PSI. Delivery gauges are always over-scaled for better precision at higher pressure settings. Max. Inlet Pressure: 4500 PSI - Delivery Pressure Range: 0-1400 PSI Brass machined body and housing cap designed for heavy-duty applications where high outlet pressure is required Outlet connector: 1/4" Flare - Inlet Connector: CGA-580 - For use with Inert Gases: Nitrogen, Argon, Helium Single stage Piston Style Regulator, with sintered inlet filter and Delrin cap bushing for smooth adjustments. Cartridge type stage assembly with PTFE stage.

  • Max. Inlet Pressure: 4500 PSI - Delivery Pressure Range: 0-1400 PSI
  • Brass machined body and housing cap designed for heavy-duty applications where high outlet pressure is required
  • Single stage Piston Style Regulator, with sintered inlet filter and Delrin cap bushing for smooth adjustments. Cartridge type stage assembly with PTFE stage.

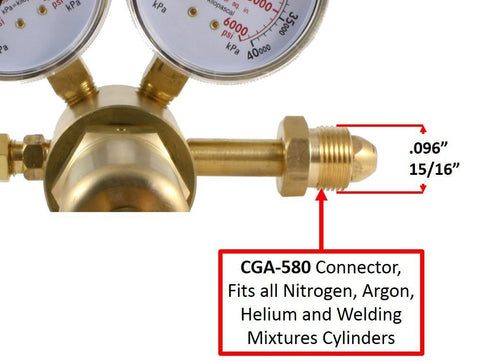

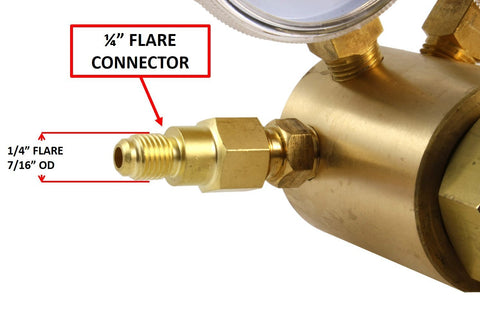

  • Outlet connector: 1/4" Flare - Inlet Connector: CGA-580 - For use with Inert Gases: Nitrogen, Argon, Helium

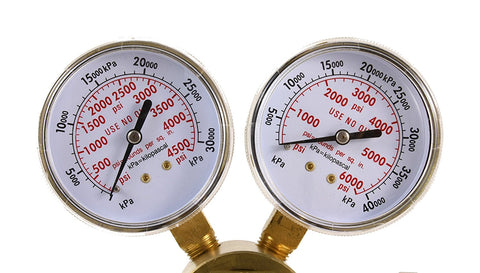

  • Please note that Delivery Pressure Gauge reads up to 4500 PSI. But this regulator delivery pressure range is 0-1400 PSI. Delivery gauges are always over-scaled for better precision at higher pressure settings.
