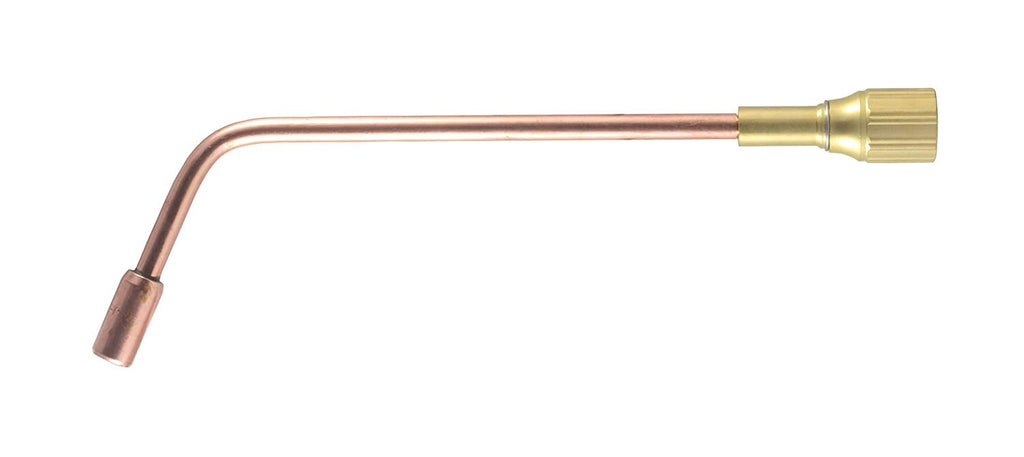

J-63 copper heating tip with brass mixer assembly
J-63 multi-flame heating tip with copper tube and brass mixer

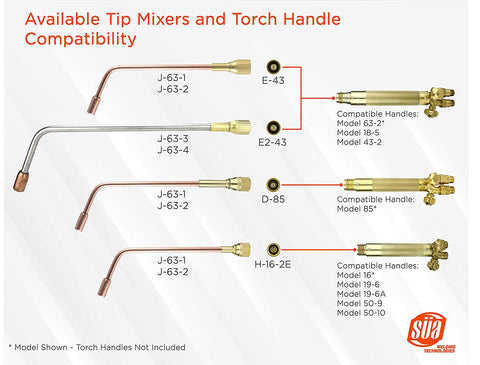

J-63 mixer and Harris-style torch-handle compatibility chart
J-63 heating-tip dimensions with size 1 and size 2 head views
J-63 heating tip assembly with angled copper heating head

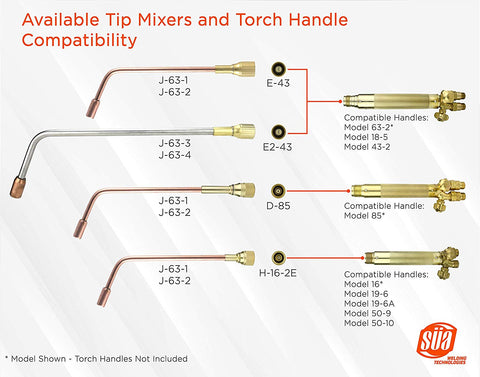

J-63 mixer and Harris-style torch-handle compatibility chart
J-63 copper heating tip with brass mixer assembly
J-63 copper heating tip with brass mixer assembly
J-63 copper heating tip with brass mixer assembly
Long J-63 heating tip with silver-colored tube and brass mixer
J-63 copper heating tip without mixer
J-63 copper heating tip with brass mixer assembly
J-63 size 1 and 2 heating-tip dimension drawing
J-63 size 3 and 4 heating-tip dimension drawing
J-63 heating tip in retail packaging

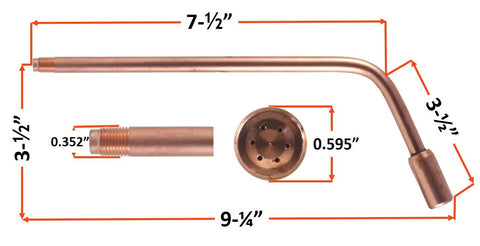

J-63 tip-only dimensions and inlet detail

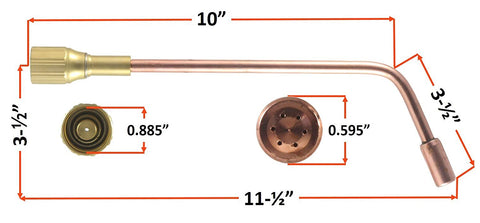

J-63 heating assembly dimensions and mixer inlet view
Brass mixer shown separately for a heating-tip assembly

SÜA J-63 Oxy-Acetylene Heating Tips with Harris-Compatible Mixers

  • Sale
  • $33.99
  • J-63 multi-flame heating tips for compatible oxy-acetylene or oxy-hydrogen heating operations.
  • For metal heating, bending and expansion; copper and brass construction.
  • Size 1 or 2 is offered with E-43, D-85 or H-16-2E mixer. Sizes 3 and 4 use the E2-43 mixer.
  • A size 1 tip-only option is also listed; it does not include a mixer.
  • Match the mixer to the exact torch-handle model shown in the compatibility chart. Follow the size-specific gas-flow requirements and torch instructions.
  • Mixer compatibility: E-43/E2-43 for handles 63-2, 18-5 and 43-2; D-85 for handle 85; H-16-2E for handles 16, 19-6, 19-6A, 50-9 and 50-10.
  • SÜA replacement equipment; not manufactured by Harris.
