Coiled welding extension with LC-40 connectors
Coiled welding cable extension with Dinse connectors

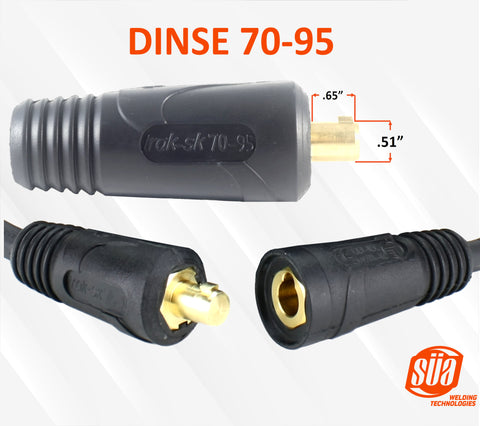

Large Dinse male and female connector dimension guide

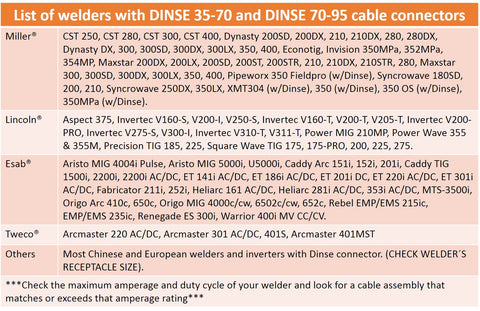

Dinse welding connector compatibility chart

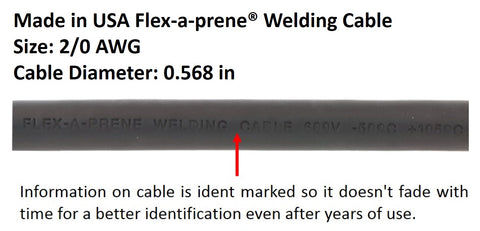

Flex-A-Prene 2/0 AWG cable jacket and diameter guide

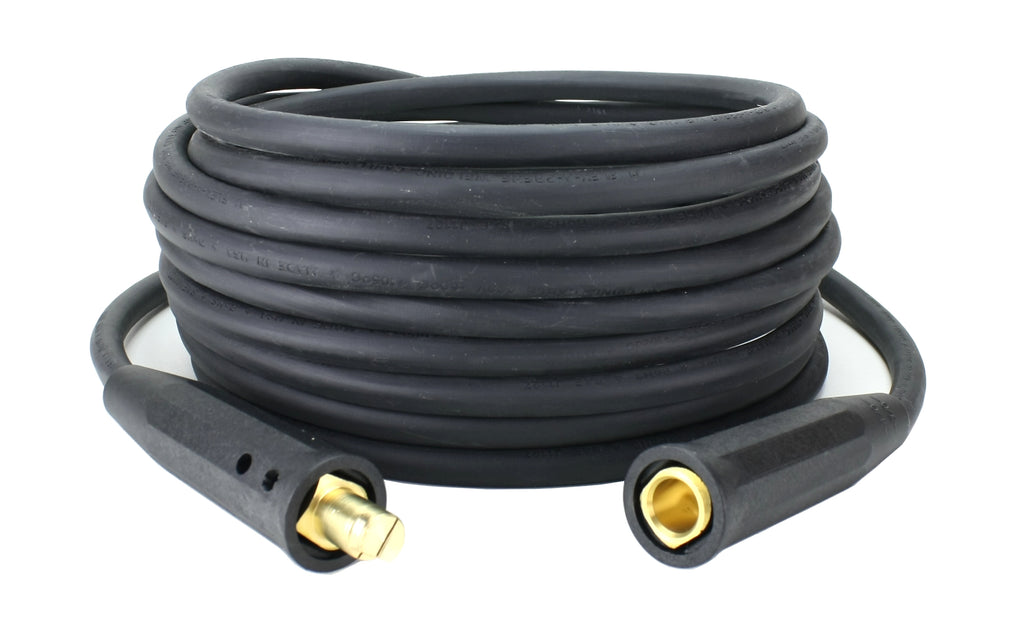

Coiled welding extension with LC-40 connectors

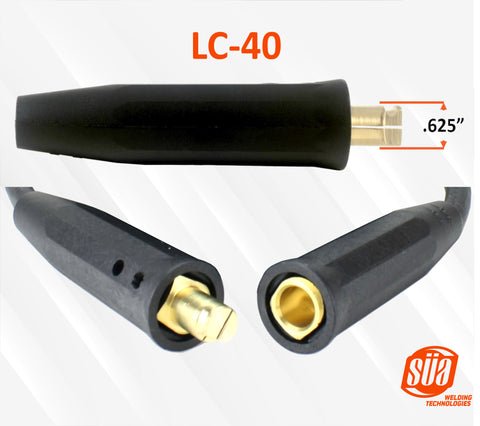

LC-40 male and female connector dimension guide

SÜA 500A Welding Lead Extension, 2/0 AWG Flex-A-Prene

  • Sale
  • $175.00
  • Welding lead extension made in the USA with Flex-A-Prene 2/0 AWG cable; rated 500 amps at 60% duty cycle.
  • One male connector and one female connector extend an existing electrode-holder or ground lead.
  • Choose LC-40 or the Dinse option labeled “Dinse 75-90” in the selector. The pictured Dinse connector has a 0.51-inch pin diameter; compare its drawing with your existing connector.
  • Choose 15, 25, 50, 75 or 100 feet.
  • One fully assembled extension supplied; two extensions are required to extend both welding leads.
