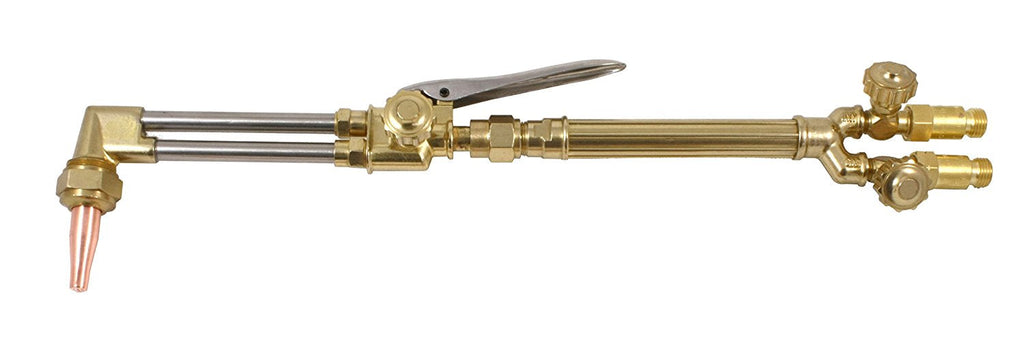

Medium-duty oxy-fuel cutting torch assembled
Medium-duty oxy-fuel cutting torch assembled

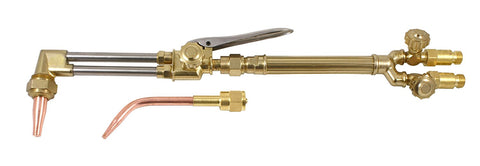

Medium-duty cutting torch with separate welding tip

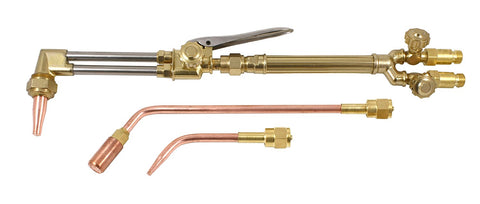

Medium-duty torch with welding and heating tips
Oxy-fuel torch check-valve connections close-up
Torch Type B hose fittings and thread dimensions
Medium-duty cutting torch showing 17-inch assembled length

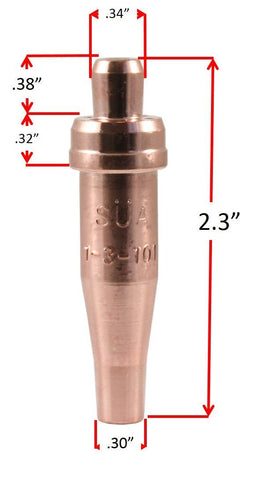

Small acetylene cutting-tip dimension drawing

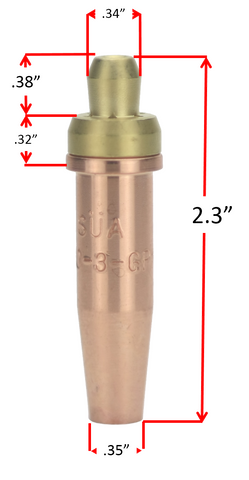

Small propane cutting-tip dimension drawing
GPN and GPP cutting-tip selection chart with gas pressures

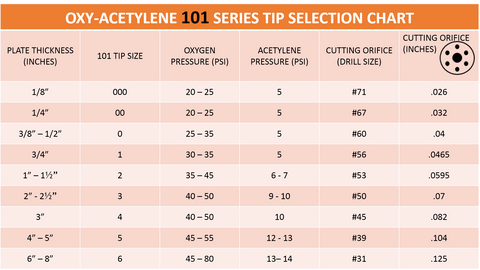

101-series acetylene cutting-tip operating chart
Torch handle fitted with rosebud heating tip
Torch handle fitted with bent welding tip
Close-up of cutting torch head and tip
Medium-duty cutting torch side view

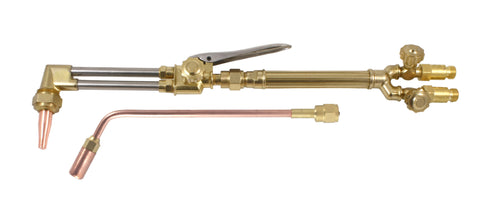

Cutting torch with separate rosebud heating tip
Copper rosebud heating tip and brass connector

SÜA Medium-Duty Oxy-Fuel Torch for Victor 100 Series

  • Sale
  • $92.99
  • Die-forged brass torch compatible with Victor 100-series equipment.
  • Uses Series 3 small cutting tips, W-1 welding tips, and MFA-1 or MFN-1 heating tips with the appropriate gas.
  • Choose torch-only or an available cutting, welding and heating configuration for acetylene or propane. Included tips depend on the selected option.
  • Assembled length: 17 inches. Hose connections: 9/16-18 right-hand and left-hand.
  • Complete torch options include check valves. Use appropriate flashback protection and follow the equipment instructions.
