200A #2 AWG welding lead pair with Dinse connectors
150A #4 AWG welding lead pair with Dinse 10-25 connectors
200A #2 AWG welding lead pair with LC40 connectors
200A #2 AWG welding lead pair with Dinse connectors
200A #2 AWG welding lead pair with terminal-lug connections

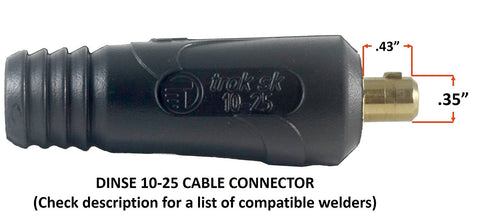

Dinse 10-25 welding cable plug with pin dimensions
Close view of AF-3-compatible electrode-holder jaws
Close view of work-clamp attachment and insulated cable termination
USA-made #2 AWG Flex-A-Prene welding cable marking and outside diameter

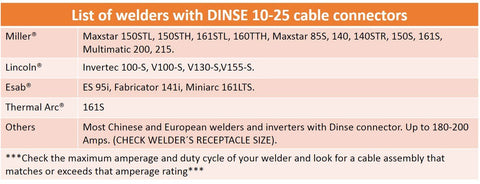

Dinse 10-25 welder connection reference chart
Dinse 35-70 welding cable plug with pin dimensions

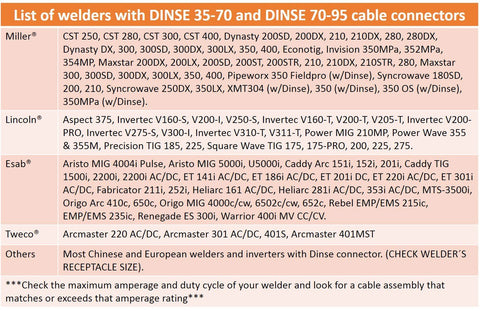

Dinse 35-70 and 70-95 welder connection reference chart
LC40-style welding cable connector with quarter-turn locking end

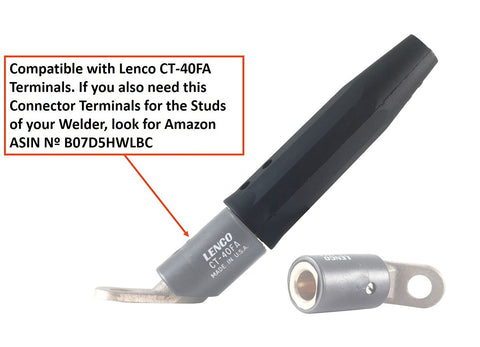

LC40 cable connector and compatible Lenco CT-40FA stud terminal illustration
Tinned copper cable lug with half-inch hole and insulated crimp connection

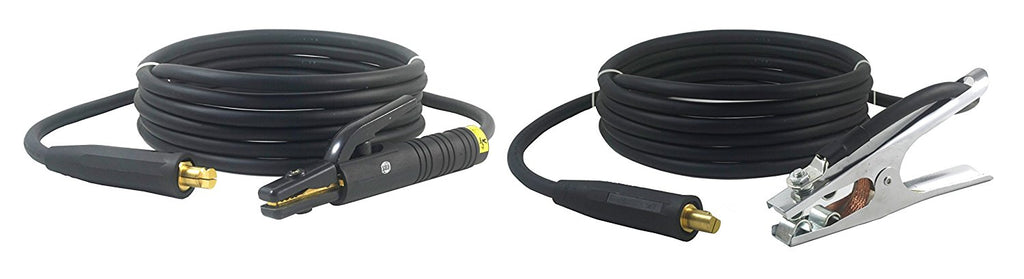

SÜA 200A Welding Lead Set, #2 AWG Flex-A-Prene Cable

  • Sale
  • $209.00

Welding Lead Set rated 200A at 60% duty cycle, assembled with #2 AWG Flex-A-Prene cable made in the USA.

  • Electrode holder compatible with AF-3. Includes a separate work-clamp lead with EG-300-compatible clamp.
  • Lengths: 15, 25, 50, 75 or 100 feet. The selected length applies to each of the two leads.
  • Connection options: LC40, Dinse 10-25, Dinse 35-70 or terminal lug.
  • Match connector dimensions and assembly current/duty-cycle rating to the welder and application.
