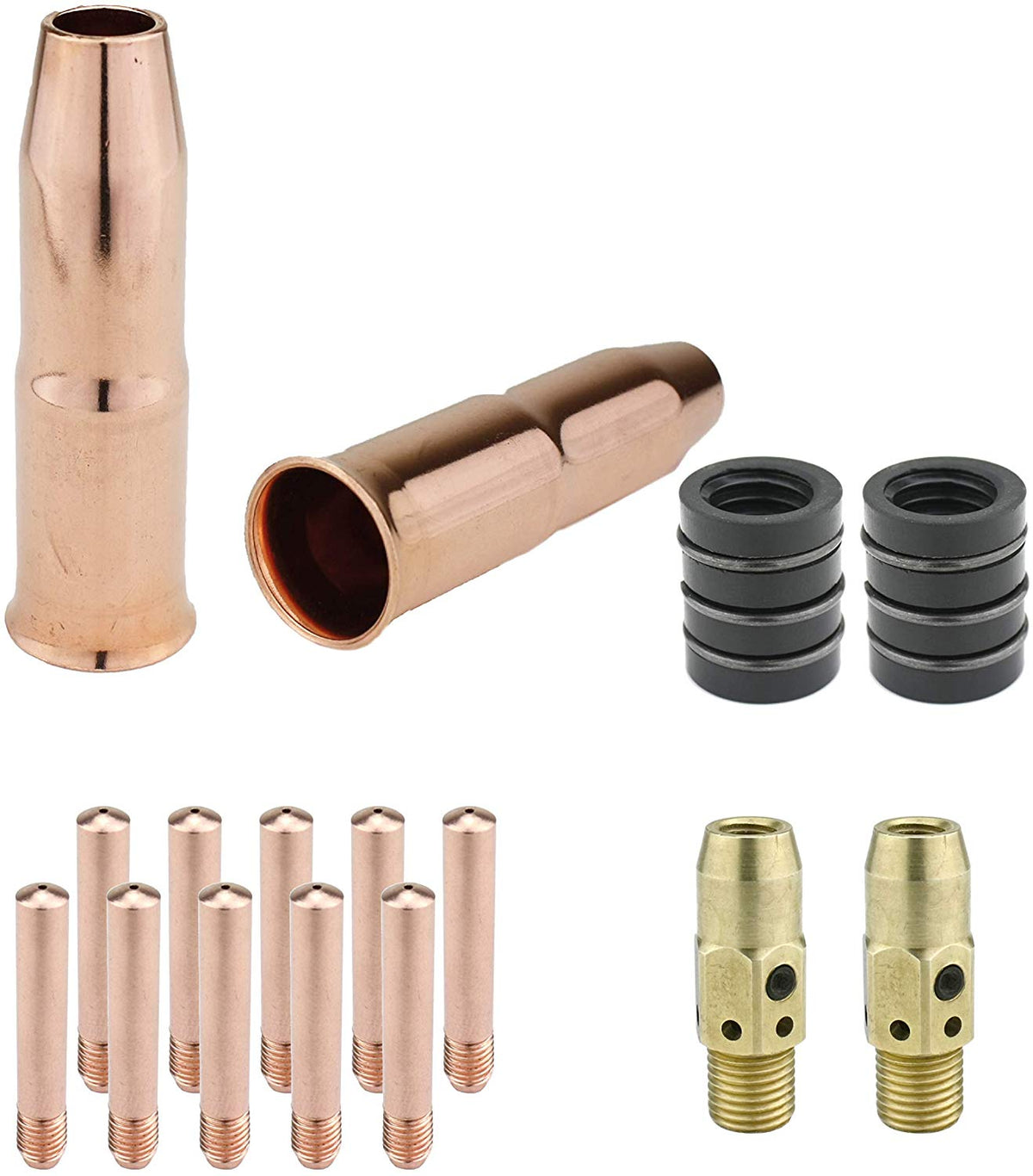

MIG kit with 24A nozzles, 14 tips, 54A diffusers and 34A insulators
MIG kit with 24A nozzles, 14 tips, 54A diffusers and 34A insulators
14-series MIG contact-tip dimensions and wire-size chart
24A MIG nozzle opening sizes, length and 34A insulator diagram

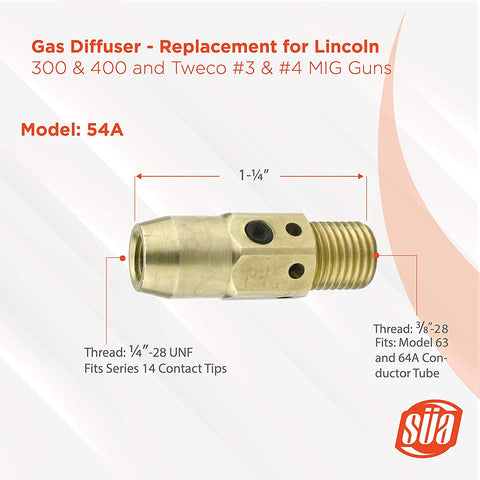

54A MIG gas diffuser dimensions and thread diagram

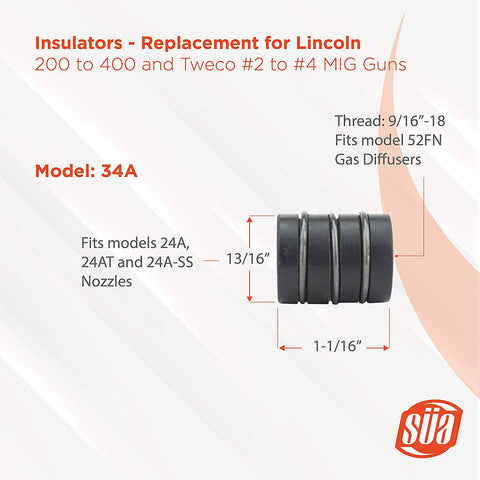

34A MIG nozzle insulator dimensions and compatible nozzle series

SÜA MIG Kit for Magnum 300/400: 14 Tips, 24A Nozzles, 54A Diffusers

  • Sale
  • $30.99
  • Replacement consumables kit for Lincoln Magnum 300/400 and Tweco #3/#4 MIG guns.
  • Includes 10 series 14 standard contact tips, 2 series 24A gas nozzles and 2 model 54A gas diffusers. Also includes 2 model 34A nozzle insulators.
  • Contact-tip wire sizes: 0.023", 0.030", 0.035", 0.045", 1/16".
  • Nozzle openings offered in this kit: 1/2", 5/8", 3/4". Select the matching tip/nozzle combination.
  • Compare the part model, mounting style and dimensions with your existing gun before ordering.
